Multipin 4 - 37 pin Devices

Control Multiple Circuits and Signals with Multipin Plugs and Receptacles

MELTRIC offers a wide range of Multipin plugs and receptacles that provide a convenient and reliable means of connecting multiple circuits and/or control and monitoring signals through a single device.

Benefits

Superior Electrical Performance

Better contact technology and materials provide high conductivity connections that hold up in harsh conditions. More…

multiple circuit connections

Connect Multiple Circuits with One Device

MELTRIC multipin devices allow users to safely and efficiently connect multiple loads as well as control and monitoring signals in a single space and cost efficient device. More…

self-ejecting plug and receptacle

Minimize Drive-Away Damage

Most MELTRIC Multipin devices are available with a self-ejection option that minimizes system damage if trailers drive away from docks without disconnecting. More…

safety first

Ensure User Safety

Like all our devices, MELTRIC Multipin products are designed with safety features to ensure users are protected from electrical hazards. More…

Ranges

PN7c

  • 5 to 7 contacts
  • 480 VAC/130 VDC
  • 15A current interrupting
  • Suitable for 4-20mA signals
  • IP66/IP67 (poly/metal)
  • Screw terminals
  • Poly, metal, and stainless steel casings
  • UL/CSA listed (not SS devices)

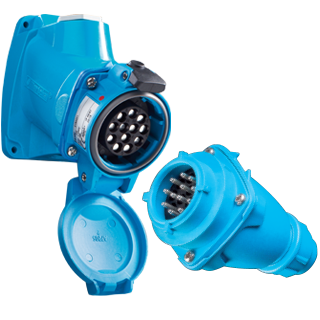

PN12c

  • Up to 12 contacts
  • 600 VAC/130 VDC
  • 2A current interrupting
  • 7.5A non-current interrupting
  • Suitable for 4-20mA signals
  • IP66/IP67 (poly/metal)
  • Crimp or solder terminals
  • Poly, metal, and stainless steel casings

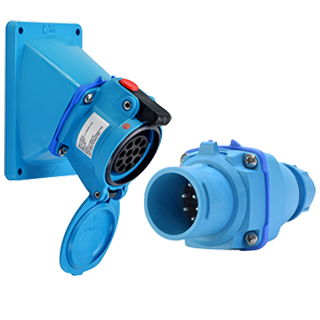

DSN12c

  • Up to 12 contacts
  • 480 VAC/130 VDC
  • 2A current interrupting
  • 7.5A non-current interrupting
  • Suitable for 4-20mA signals
  • IP66/IP67/IP69
  • Crimp or solder terminals
  • Poly casings

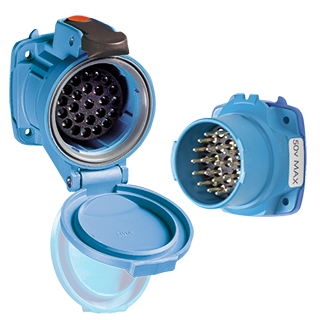

DSN24c

  • Up to 24 contacts
  • 480 VAC/130 VDC
  • 2A current interrupting
  • 7.5A non-current interrupting
  • Suitable for 4-20mA signals
  • IP66/IP67
  • Crimp or solder terminals
  • Poly casings

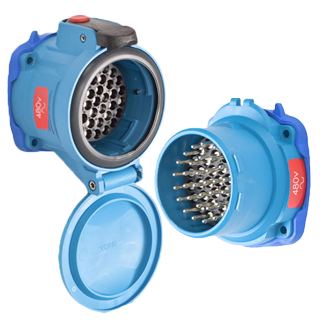

DSN37c

  • Up to 37 contacts
  • 480 VAC/130 VDC
  • 2A current interrupting
  • 7.5A non-current interrupting
  • Suitable for 4-20mA signals
  • IP66/IP67
  • Crimp or solder terminals
  • Poly casings

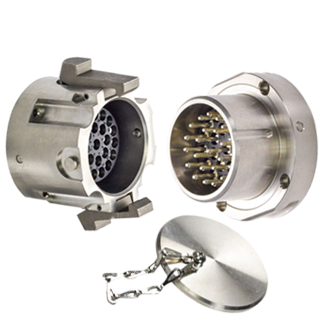

DS24c

  • Up to 24 contacts
  • 250 VAC/130 VDC
  • 2A current interrupting
  • 7.5A non-current interrupting
  • Suitable for 4-20mA signals
  • IP54/IP55
  • Crimp or solder terminals
  • Dual-pawl, stainless steel casings

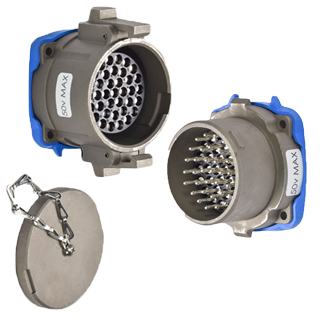

DS37c

  • Up to 37 contacts
  • 250 VAC/130 VDC
  • 2A current interrupting
  • 7.5A non-current interrupting
  • Suitable for 4-20mA signals
  • IP54/IP55
  • Crimp or solder terminals
  • Dual-pawl, stainless steel casings

DN9c

  • Up to 9 contacts
  • 480 VAC/130 VDC
  • 20A current interrupting
  • Up to 5 hp, multiple circuits
  • IP54/IP55
  • Screw terminals
  • Metal casings

DN20c

  • Up to 20 contacts
  • 480 VAC/130 VDC
  • 15A current interrupting
    (20A for ≤ 12 contacts)
  • Up to 3 hp, multiple circuits
  • IP54/IP55
  • Screw terminals
  • Metal casings

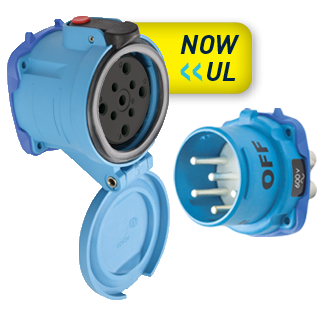

DS7c

  • Up to 7 contacts + 3 aux
  • 600 VAC/130 VDC
  • 30A current interrupting
  • IP54/IP55
  • Screw terminals
  • Poly and metal casings

DR7c

  • Up to 7 contacts + 3 aux
  • 600 VAC/130 VDC
  • 50A non-current interrupting
  • IP54/IP55
  • Screw terminals
  • Poly and metal casings

Key Features

Spring-Loaded Butt Contacts

Silver or Silver-Nickel Contact Surfaces

Push-Button Disconnection

Crimp/Solder Terminals

Screw Terminals

Installation Flexibility

Replacement Parts
