High Ampacity

RECEPTACLE Please contact customer service for configurations that are not shown.
Select Part Number Description Amp Voltage Phasing HP Rating Environmental Rating
39-44043-172 DR400 RECEPTACLE 400A 480 VAC 3P+G IP54/IP55
39-44043-172-4X DR400 RECEPTACLE 400A 480 VAC 3P+G IP66/IP67
39-44043-172-NC DR400 RECEPTACLE 400A 480 VAC 3P+G IP54/IP55
39-44073-172 DR400 RECEPTACLE 400A 250 VAC 3P+G IP54/IP55
39-44073-172-4X DR400 RECEPTACLE 400A 250 VAC 3P+G Type 4X
39-44143-172 DR400 RECEPTACLE 350A 600 VAC 3P+G IP54/IP55
39-44143-172-4X DR400 RECEPTACLE 350A 600 VAC 3P+G IP66/IP67
39-44143-172-NC DR400 RECEPTACLE 350A 600 VAC 3P+G IP54/IP55
39-44163-172 DR400 RECEPTACLE 400A 208 VAC 3P+G IP54/IP55
39-44163-172-4X DR400 RECEPTACLE 400A 208 VAC 3P+G IP66/IP67
45-34001-P80 CS1000 RECEPTACLE 400A 600 VAC L1 IP66/IP67
45-34002-P80 CS1000 RECEPTACLE 400A 600 VAC L2 IP66/IP67
45-34003-P80 CS1000 RECEPTACLE 400A 600 VAC L3 IP66/IP67
45-3400M-P80 CS1000 RECEPTACLE 400A 600 VDC NEGATIVE IP66/IP67
45-3400N-P80 CS1000 RECEPTACLE 400A 600 VAC N IP66/IP67
45-3400P-P80 CS1000 RECEPTACLE 400A 600 VDC POSITIVE IP66/IP67
45-3400T-P80 CS1000 RECEPTACLE 400A 600 VAC G IP66/IP67
45-44001-P80 SP RECEPTACLE 600A 600 VAC L1 IP66/IP67
45-44002-P80 SP RECEPTACLE 600A 600 VAC L2 IP66/IP67
45-44003-P80 SP RECEPTACLE 600A 600 VAC L3 IP66/IP67
45-4400N-P80 SP RECEPTACLE 600A 600 VAC N IP66/IP67
45-4400T-P80 SP RECEPTACLE 600A 600 VAC G IP66/IP67
47-34042 PFQ300 RECEPTACLE 300A 480 VAC 2P+G IP66/IP67
47-34043 PFQ300 RECEPTACLE 300A 480 VAC 3P+G IP66/IP67
47-34043-48 PFQ300 RECEPTACLE 300A 480 VAC 3P+G IP66/IP67
47-34045 PFQ300 RECEPTACLE 300A 277 VAC 1P+N+G IP66/IP67
47-34046 PFQ300 RECEPTACLE 300A 480 VAC 2P+N+G IP66/IP67
47-34047 PFQ300 RECEPTACLE 300A 277/480 VAC 3P+N+G IP66/IP67
47-34142 PFQ300 RECEPTACLE 300A 600 VAC 2P+G IP66/IP67
47-34143 PFQ300 RECEPTACLE 300A 600 VAC 3P+G IP66/IP67
47-34145 PFQ300 RECEPTACLE 300A 347 VAC 1P+N+G IP66/IP67
47-34146 PFQ300 RECEPTACLE 300A 347/600 VAC 2P+N+G IP66/IP67
47-34147 PFQ300 RECEPTACLE 300A 347/600 VAC 3P+N+G IP66/IP67
47-34147-48 PFQ300 RECEPTACLE 300A 347/600 VAC 3P+N+G IP66/IP67
47-34167 PFQ300 RECEPTACLE 300A 120/208 VAC 3P+N+G IP66/IP67
49-34042 PF300 RECEPTACLE 300A 480 VAC 2P+G IP66/IP67
49-34043 PF300 RECEPTACLE 300A 480 VAC 3P+G IP66/IP67
49-34043-48 PF300 RECEPTACLE 300A 480 VAC 3P+G IP66/IP67
49-34045 PF300 RECEPTACLE 300A 277 VAC 1P+N+G IP66/IP67
49-34046 PF300 RECEPTACLE 300A 480 VAC 2P+N+G IP66/IP67
49-34047 PF300 RECEPTACLE 300A 277/480 VAC 3P+N+G IP66/IP67
49-34142 PF300 RECEPTACLE 300A 600 VAC 2P+G IP66/IP67
49-34143 PF300 RECEPTACLE 300A 600 VAC 3P+G IP66/IP67
49-34145 PF300 RECEPTACLE 300A 347 VAC 1P+N+G IP66/IP67
49-34146 PF300 RECEPTACLE 300A 600 VAC 2P+N+G IP66/IP67
49-34147 PF300 RECEPTACLE 300A 600 VAC 3P+N+G IP66/IP67
49-44042 PF400 RECEPTACLE 400A 480 VAC 2P+G IP66/IP67
49-44043 PF400 RECEPTACLE 400A 480 VAC 3P+G IP66/IP67
49-44043-48 PF400 RECEPTACLE 400A 480 VAC 3P+G IP66/IP67
49-44043-843 PF400 RECEPTACLE 400A 480 VAC 3P+G IP66/IP67
49-44045 PF400 RECEPTACLE 400A 277 VAC 1P+N+G IP66/IP67
49-44046 PF400 RECEPTACLE 400A 277/480 VAC 2P+N+G IP66/IP67
49-44046-48 PF400 RECEPTACLE 400A 277/480 VAC 2P+N+G IP66/IP67
49-44047 PF400 RECEPTACLE 400A 277/480 VAC 3P+N+G IP66/IP67
49-44047-48 PF400 RECEPTACLE 400A 277/480 VAC 3P+N+G IP66/IP67
49-44047-843 PF400 RECEPTACLE 400A 277/480 VAC 3P+N+G IP66/IP67
49-44073 PF400 RECEPTACLE 400A 250 VAC 3P+G IP66/IP67
49-44142 PF400 RECEPTACLE 400A 600 VAC 2P+G IP66/IP67
49-44143 PF400 RECEPTACLE 400A 600 VAC 3P+G IP66/IP67
49-44143-48 PF400 RECEPTACLE 400A 600 VAC 3P+G IP66/IP67
49-44143-843 PF400 RECEPTACLE 400A 600 VAC 3P+G IP66/IP67
49-44145 PF400 RECEPTACLE 400A 347 VAC 1P+N+G IP66/IP67
49-44146 PF400 RECEPTACLE 400A 600 VAC 2P+N+G IP66/IP67
49-44147 PF400 RECEPTACLE 400A 347/600 VAC 3P+N+G IP66/IP67
49-44147-48 PF400 RECEPTACLE 400A 347/600 VAC 3P+N+G IP66/IP67
49-44163 PF400 RECEPTACLE 400A 208 VAC 3P+G IP66/IP67
49-44167 PF400 RECEPTACLE 400A 120/208 VAC 3P+N+G IP66/IP67
49-44167-843 PF400 RECEPTACLE 400A 120/208 VAC 3P+N+G IP66/IP67
49-64042 PF600 RECEPTACLE 600A 480 VAC 2P+G IP66/IP67
49-64043 PF600 RECEPTACLE 600A 480 VAC 3P+G IP66/IP67
49-64045 PF600 RECEPTACLE 600A 277 VAC 1P+N+G IP66/IP67
49-64046 PF600 RECEPTACLE 600A 277/480 VAC 2P+N+G IP66/IP67
49-64047 PF600 RECEPTACLE 600A 277/480 VAC 3P+N+G IP66/IP67
49-64142 PF600 RECEPTACLE 600A 600 VAC 2P+G IP66/IP67
49-64143 PF600 RECEPTACLE 600A 600 VAC 3P+G IP66/IP67
49-64143-48 PF600 RECEPTACLE 600A 600 VAC 3P+G IP66/IP67
49-64143-843 PF600 RECEPTACLE 600A 600 VAC 3P+G IP66/IP67
49-64145 PF600 RECEPTACLE 600A 347 VAC 1P+N+G IP66/IP67
49-64146 PF600 RECEPTACLE 600A 277/480 VAC 2P+N+G IP66/IP67
49-64147 PF600 RECEPTACLE 600A 347/600 VAC 3P+N+G IP66/IP67
49-64167 PF600 RECEPTACLE 600A 120/208 VAC 3P+N+G IP66/IP67
View More
INLET Please contact customer service for configurations that are not shown.
Select Part Number Description Amp Voltage Phasing HP Rating Environmental Rating
39-48043-172 DR400 INLET 400A 480 VAC 3P+G IP54
39-48043-172-4X DR400 INLET 400A 480 VAC 3P+G IP66/IP67
39-48043-172-4X-A155 DR400 INLET 400A 480 VAC 3P+G IP66/IP67
39-48073-172 DR400 INLET 400A 250 VAC 3P+G IP54
39-48073-172-4X DR400 INLET 400A 250 VAC 3P+G Type 4X
39-48073-172-4X-A155 DR400 INLET 400A 250 VAC 3P+G Type 4X
39-48073-172-A155 DR400 INLET 400A 250 VAC 3P+G IP54
39-48143-172 DR400 INLET 350A 600 VAC 3P+G IP54
39-48143-172-4X DR400 INLET 350A 600 VAC 3P+G IP66/IP67
39-48163-172 DR400 INLET 400A 208 VAC 3P+G IP54
39-48163-172-4X DR400 INLET 400A 208 VAC 3P+G IP66/IP67
45-38001-P80 CS1000 INLET 400A 600 VAC L1 IP66/IP67
45-38002-P80 CS1000 INLET 400A 600 VAC L2 IP66/IP67
45-38003-P80 CS1000 INLET 400A 600 VAC L3 IP66/IP67
45-3800M-P80 CS1000 INLET 400A 600 VDC NEGATIVE IP66/IP67
45-3800N-P80 CS1000 INLET 400A 600 VAC N IP66/IP67
45-3800P-P80 CS1000 INLET 400A 600 VDC POSITIVE IP66/IP67
45-3800T-P80 CS1000 INLET 400A 600 VAC G IP66/IP67
45-48001-P80 SP INLET 600A 600 VAC L1 IP66/IP67
45-48002-P80 SP INLET 600A 600 VAC L2 IP66/IP67
45-48003-P80 SP INLET 600A 600 VAC L3 IP66/IP67
45-4800N-P80 SP INLET 600A 600 VAC N IP66/IP67
45-4800T-P80 SP INLET 600A 600 VAC G IP66/IP67
47-38042 PFQ300 INLET 300A 480 VAC 2P+G IP66/IP67
47-38043 PFQ300 INLET 300A 480 VAC 3P+G IP66/IP67
47-38043-48 PFQ300 INLET 300A 480 VAC 3P+G IP66/IP67
47-38045 PFQ300 INLET 300A 277 VAC 1P+N+G IP66/IP67
47-38046 PFQ300 INLET 300A 480 VAC 2P+N+G IP66/IP67
47-38047 PFQ300 INLET 300A 277/480 VAC 3P+N+G IP66/IP67
47-38142 PFQ300 INLET 300A 600 VAC 2P+G IP66/IP67
47-38143 PFQ300 INLET 300A 600 VAC 3P+G IP66/IP67
47-38143-48 PFQ300 INLET 300A 600 VAC 3P+G IP66/IP67
47-38145 PFQ300 INLET 300A 347 VAC 1P+N+G IP66/IP67
47-38147 PFQ300 INLET 300A 347/600 VAC 3P+N+G IP66/IP67
47-38147-48 PFQ300 INLET 300A 347/600 VAC 3P+N+G IP66/IP67
47-38167 PFQ300 INLET 300A 120/208 VAC 3P+N+G IP66/IP67
49-38042 PF300 INLET 300A 480 VAC 2P+G IP66/IP67
49-38043 PF300 INLET 300A 480 VAC 3P+G IP66/IP67
49-38043-48 PF300 INLET 300A 480 VAC 3P+G IP66/IP67
49-38045 PF300 INLET 300A 277 VAC 1P+N+G IP66/IP67
49-38046 PF300 INLET 300A 480 VAC 2P+N+G IP66/IP67
49-38047 PF300 INLET 300A 277/480 VAC 3P+N+G IP66/IP67
49-38142 PF300 INLET 300A 600 VAC 2P+G IP66/IP67
49-38143 PF300 INLET 300A 600 VAC 3P+G IP66/IP67
49-38145 PF300 INLET 300A 347 VAC 1P+N+G IP66/IP67
49-38146 PF300 INLET 300A 600 VAC 2P+N+G IP66/IP67
49-38147 PF300 INLET 300A 600 VAC 3P+N+G IP66/IP67
49-48042 PF400 INLET 400A 480 VAC 2P+G IP66/IP67
49-48043 PF400 INLET 400A 480 VAC 3P+G IP66/IP67
49-48043-48 PF400 INLET 400A 480 VAC 3P+G IP66/IP67
49-48043-843 PF400 INLET 400A 480 VAC 3P+G IP66/IP67
49-48045 PF400 INLET 400A 277 VAC 1P+N+G IP66/IP67
49-48046 PF400 INLET 400A 277/480 VAC 2P+N+G IP66/IP67
49-48047 PF400 INLET 400A 277/480 VAC 3P+N+G IP66/IP67
49-48047-48 PF400 INLET 400A 277/480 VAC 3P+N+G IP66/IP67
49-48047-843 PF400 INLET 400A 277/480 VAC 3P+N+G IP66/IP67
49-48073 PF400 INLET 400A 250 VAC 3P+G IP66/IP67
49-48142 PF400 INLET 400A 600 VAC 2P+G IP66/IP67
49-48143 PF400 INLET 400A 600 VAC 3P+G IP66/IP67
49-48143-48 PF400 INLET 400A 600 VAC 3P+G IP66/IP67
49-48143-843 PF400 INLET 400A 600 VAC 3P+G IP66/IP67
49-48145 PF400 INLET 400A 347 VAC 1P+N+G IP66/IP67
49-48146 PF400 INLET 400A 600 VAC 2P+N+G IP66/IP67
49-48147 PF400 INLET 400A 347/600 VAC 3P+N+G IP66/IP67
49-48147-48 PF400 INLET 400A 347/600 VAC 3P+N+G IP66/IP67
49-48167 PF400 INLET 400A 120/208 VAC 3P+N+G IP66/IP67
49-48167-843 PF400 INLET 400A 120/208 VAC 3P+N+G IP66/IP67
49-68042 PF600 INLET 600A 480 VAC 2P+G IP66/IP67
49-68043 PF600 INLET 600A 480 VAC 3P+G IP66/IP67
49-68043-48 PF600 INLET 600A 480 VAC 3P+G IP66/IP67
49-68045 PF600 INLET 600A 277 VAC 1P+N+G IP66/IP67
49-68046 PF600 INLET 600A 277/480 VAC 2P+N+G IP66/IP67
49-68047 PF600 INLET 600A 480 VAC 3P+N+G IP66/IP67
49-68142 PF600 INLET 600A 600 VAC 2P+G IP66/IP67
49-68143 PF600 INLET 600A 600 VAC 3P+G IP66/IP67
49-68143-48 PF600 INLET 600A 600 VAC 3P+G IP66/IP67
49-68145 PF600 INLET 600A 347 VAC 1P+N+G IP66/IP67
49-68146 PF600 INLET 600A 600 VAC 2P+N+G IP66/IP67
49-68147 PF600 INLET 600A 347/600 VAC 3P+N+G IP66/IP67
49-68167 PF600 INLET 600A 120/208 VAC 3P+N+G IP66/IP67
View More
ACCESSORY HANDLE
Select Part Number Description Size
45-4A753-A HANDLE w/WIRE MESH CORD GRIP POLY BLACK SIZE S .750-.875 in S
45-4A753-B HANDLE w/WIRE MESH CORD GRIP POLY BLACK SIZE S .875-1.000 in S
45-4A753-C HANDLE w/WIRE MESH CORD GRIP POLY BLACK SIZE S 1.000-1.125 in S
45-4A753-D HANDLE w/WIRE MESH CORD GRIP POLY BLACK SIZE S 1.125-1.250 in S
45-4A753-E HANDLE w/WIRE MESH CORD GRIP POLY BLACK SIZE S 1.250-1.375 in S
45-4A783-A HANDLE w/WIRE MESH CORD GRIP POLY BLACK SIZE S 1.250-1.375 in S
45-4A783-B HANDLE w/WIRE MESH CORD GRIP POLY BLACK SIZE S 1.312-1.437 in S
45-4A783-C HANDLE w/WIRE MESH CORD GRIP POLY BLACK SIZE S 1.438-1.562 in S
45-4A783-D HANDLE w/WIRE MESH CORD GRIP POLY BLACK SIZE S 1.562-1.688 in S
47-3A013-200 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE F IP 66/67 2.000-2.125 in F
47-3A013-225 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE F IP 66/67 2.125-2.250 in F
47-3A013-237 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE F IP 66/67 2.250-2.375 in F
47-3A013-250 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE F IP 66/67 2.375-2.500 in F
47-3A013-275 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE F IP 66/67 2.500-2.750 in F
47-3A013-300 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE F IP 66/67 2.750-3.000 in F
47-3A013-312 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE F IP 66/67 3.000-3.125 in F
47-3A013-350 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE F IP 66/67 3.350-3.577 in F

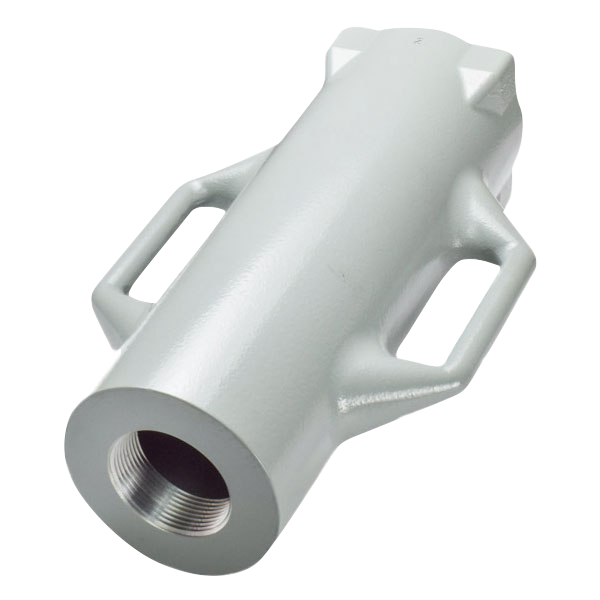

47-3A013-N20 HANDLE STRAIGHT w/NPT ADAPTER METAL GRAY SIZE F IP 66/67 60 Hz 2" NPT F
47-3A013-N25 HANDLE STRAIGHT w/NPT ADAPTER METAL GRAY SIZE F IP 66/67 2 1/2" NPT F
47-3A013-N30 HANDLE STRAIGHT w/NPT ADAPTER METAL GRAY SIZE F IP 66/67 60 Hz 3" NPT F
47-3A913-200 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE F 2.000-2.125 in F
47-3A913-225 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE F 2.125-2.250 in F
47-3A913-237 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE F 2.250-2.375 in F
47-3A913-250 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE F 2.375-2.500 in F
47-3A913-275 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE F 2.500-2.750 in F
47-3A913-300 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE F 2.750-3.000 in F
47-3A913-312 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE F 3.000-3.125 in F
47-3A913-335 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE F 3.125-3.350 in F
47-3A913-N20 HANDLE ANGLED w/NPT ADAPTER METAL GRAY SIZE F 2" NPT F
47-3A913-N25 HANDLE ANGLED w/NPT ADAPTER METAL GRAY SIZE F 2 1/2" NPT F
47-3A913-N30 HANDLE ANGLED w/NPT ADAPTER METAL GRAY SIZE F 3" NPT F
49-3A013-200 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.000-2.125 in C
49-3A013-225 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.125-2.250 in C
49-3A013-237 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.250-2.375 in C
49-3A013-250 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.375-2.500 in C
49-3A013-275 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.500-2.750 in C
49-3A013-300 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.750-3.000 in C
49-3A013-312 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 3.000-3.125 in C
49-3A013-335 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 3.125-3.350 in C
49-3A013-350 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 3.350-3.577 in C
49-3A913-200 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.000-2.125 in C
49-3A913-225 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.125-2.250 in C
49-3A913-237 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.250-2.375 in C
49-3A913-250 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.375-2.500 in C
49-3A913-275 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.500-2.750 in C
49-3A913-300 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.750-3.000 in C
49-3A913-312 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 3.000-3.125 in C
49-3A913-350 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 3.350-3.577 in C
49-4A013-200 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.000-2.125 in C
49-4A013-225 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.125-2.250 in C
49-4A013-237 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.250-2.375 in C
49-4A013-250 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.375-2.500 in C
49-4A013-275 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.500-2.750 in C
49-4A013-300 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.750-3.000 in C
49-4A013-312 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 3.000-3.125 in C
49-4A013-335 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 3.125-3.350 in C
49-4A013-350 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 3.350-3.577 in C
49-4A913-200 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.000-2.125 in C
49-4A913-225 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.125-2.250 in C
49-4A913-237 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.250-2.370 in C
49-4A913-250 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.375-2.500 in C
49-4A913-275 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.500-2.750 in C
49-4A913-300 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.750-3.000 in C
49-4A913-312 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 3.000-3.125 in C
49-4A913-335 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 3.125-3.350 in C
49-4A913-350 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 3.350-3.577 in C
49-6A013-200 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.000-2.125 in C
49-6A013-275 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C IP 66/67 60 Hz 2.500-2.750 in C
49-6A013-300 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.750-3.000 in C
49-6A013-312 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 3.000-3.125 in C
49-6A013-335 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 3.125-3.350 in C
49-6A013-350 HANDLE STRAIGHT STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 3.350-3.577 in C
49-3A013-N20 HANDLE STRAIGHT w/NPT ADAPTER METAL GRAY SIZE C 2" NPT C
49-4A013-N20 HANDLE STRAIGHT w/NPT ADAPTER METAL GRAY SIZE C 2" NPT C
49-6A013-N20 HANDLE STRAIGHT w/NPT ADAPTER METAL GRAY SIZE C 2" NPT C
49-3A013-N25 HANDLE STRAIGHT w/NPT ADAPTER METAL GRAY SIZE C 2 1/2" NPT C
49-4A013-N25 HANDLE STRAIGHT w/NPT ADAPTER METAL GRAY SIZE C 2 1/2" NPT C
49-6A013-N25 HANDLE STRAIGHT w/NPT ADAPTER METAL GRAY SIZE C 2 1/2" NPT C
49-3A013-N30 HANDLE STRAIGHT w/NPT ADAPTER METAL GRAY SIZE C 3" NPT C
49-4A013-N30 HANDLE STRAIGHT w/NPT ADAPTER METAL GRAY SIZE C 3" NPT C
49-6A013-N30 HANDLE STRAIGHT w/NPT ADAPTER METAL GRAY SIZE C 3" NPT C
49-6A913-237 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.250-2.375 in C
49-6A913-250 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.375-2.500 in C
49-6A913-275 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.500-2.750 in C
49-6A913-300 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 2.750-3.000 in C
49-6A913-312 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 3.000-3.125 in C
49-6A913-335 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 3.125-3.350 in C
49-6A913-350 HANDLE ANGLED STANDARD CLAMP w/CABLE RANGE METAL GRAY SIZE C 3.350-3.577 in C
49-3A913-N20 HANDLE ANGLED w/NPT ADAPTER METAL GRAY SIZE C 2" NPT C
49-4A913-N20 HANDLE ANGLED w/NPT ADAPTER METAL GRAY SIZE C 2" NPT C
49-6A913-N20 HANDLE ANGLED w/NPT ADAPTER METAL GRAY SIZE C 2" NPT C
49-3A913-N25 HANDLE ANGLED w/NPT ADAPTER METAL GRAY SIZE C 2 1/2" NPT C
49-4A913-N25 HANDLE ANGLED w/NPT ADAPTER METAL GRAY SIZE C 2 1/2" NPT C
49-6A913-N25 HANDLE ANGLED w/NPT ADAPTER METAL GRAY SIZE C 2 1/2" NPT C
49-3A913-N30 HANDLE ANGLED w/NPT ADAPTER METAL GRAY SIZE C 3" NPT C
49-4A913-N30 HANDLE ANGLED w/NPT ADAPTER METAL GRAY SIZE C 3" NPT C
49-6A913-N30 HANDLE ANGLED w/NPT ADAPTER METAL GRAY SIZE C 3" NPT C
View More
ACCESSORY ANGLE
Select Part Number Description Size
45-3A027 ANGLE ADAPTER 45 DEGREE POLY BLACK SIZE M M
45-3A540 ADAPTER PLATE POLY BLACK SIZE M M
45-4A027 ANGLE ADAPTER 45 DEGREE METAL BLACK SIZE S S
5T7M0 ANGLE ADAPTER STRAIGHT ADAPTER METAL GRAY SIZE 7 7
5T7M0-115 SPACER METAL GRAY SIZE 7 7
5T7M0-68 SPACER METAL GRAY SIZE 7 7
5T7M6 ANGLE ADAPTER 60 DEGREE EXTENDED METAL GRAY SIZE 7 7
5T7M6-68 ANGLE ADAPTER 60 DEGREE EXTENDED W/ SPACER METAL GRAY SIZE 7 7
View More
ACCESSORY BOX
Select Part Number Description Size
7T7F0N20 BOX METAL GRAY SIZE 7 2" NPT 7
7T7F0N25 BOX METAL GRAY SIZE 7 2 1/2" NPT 7
7T7F0N30 BOX METAL GRAY SIZE 7 3" NPT 7
7T7F0N35 BOX METAL GRAY SIZE 7 3 1/2" NPT 7
7T7F0N40 BOX METAL GRAY SIZE 7 4" NPT 7
MB40-20 BOX METAL GRAY SIZE C 2" NPT C
MB40-25 BOX METAL GRAY SIZE C 2 1/2" NPT C
MB40-30 BOX METAL GRAY SIZE C 3" NPT C
MB40-35 BOX METAL GRAY SIZE C 3 1/2" NPT C
MB40-40 BOX METAL GRAY SIZE C 4" NPT C
MB40PFQ-20 BOX METAL GRAY SIZE F 2" NPT F
MB40PFQ-25 BOX METAL GRAY SIZE F 2 1/2" NPT F
MB40PFQ-30 BOX METAL GRAY SIZE F 3" NPT F
MB40PFQ-35 BOX METAL GRAY SIZE F 3 1/2" NPT F
View More
ACCESSORY MISC
Select Part Number Description Size
39-2A426 PLUG CAP RUBBER BLACK SIZE 6,7 6, 7
45-3A126 PLUG CAP POLY BLACK SIZE M M
45-3A396 TOOL METAL SIZE M M
45-3A843 CS1000 TOOL LOCKING METAL SIZE M 60 Hz M
45-4A376 DRAW PLATE METAL SIZE S S
47-3A126 PLUG CAP METAL GRAY SIZE F F
47-3A925 CAP RECEPTACLE METAL GRAY SIZE F F
49-3A126 PLUG CAP METAL GRAY SIZE C C
49-3A925 CAP RECEPTACLE METAL GRAY SIZE C C
49-4A126 PLUG CAP METAL GRAY SIZE C C
49-4A925 CAP RECEPTACLE METAL GRAY SIZE C C
49-6A126 PLUG CAP METAL GRAY SIZE C C
49-6A925 CAP RECEPTACLE METAL GRAY SIZE C C
DS2MC PLUG CAP LOCKING METAL SIZE 6,7 6, 7
LP-843 LOCK PIN METAL SIZE 1,2,3,4,5,6,7 1, 2, 3, 4, 5, 6, 7
View More
ACCESSORY LUG
Select Part Number Description Size
45-4A12C LUG STRAIGHT METAL SIZE M,S M, S
45-4A12D LUG STRAIGHT THREADED METAL SIZE M,S M, S
45-4A15C LUG STRAIGHT METAL SIZE M,S M, S
45-4A15D LUG STRAIGHT THREADED METAL SIZE M,S M, S
45-4A18C LUG STRAIGHT METAL SIZE M,S M, S
45-4A18D LUG STRAIGHT THREADED METAL SIZE M,S M, S
45-4A24C LUG STRAIGHT METAL SIZE M,S M, S
45-4A24D LUG STRAIGHT THREADED METAL SIZE M,S M, S
45-4A30C LUG STRAIGHT METAL SIZE S S
45-4A30D LUG STRAIGHT THREADED METAL SIZE S S
45-4A40C LUG STRAIGHT METAL SIZE S S
45-4A40D LUG STRAIGHT THREADED METAL SIZE S S
45-4A50C LUG STRAIGHT METAL SIZE M,S M, S
45-4A50D LUG STRAIGHT THREADED METAL SIZE M,S M, S
45-4A70C LUG STRAIGHT METAL SIZE M,S M, S
45-4A70D LUG STRAIGHT THREADED METAL SIZE M,S M, S
45-4A95C LUG STRAIGHT METAL SIZE M,S M, S
45-4A95D LUG STRAIGHT THREADED METAL SIZE M,S M, S
PFLUG1 LUG STRAIGHT METAL SIZE C,F 1 AWG C, F
PFLUG1-90 LUG 90 DEGREE METAL SIZE C,F 1 AWG C, F
PFLUG10 LUG STRAIGHT METAL SIZE C,F 1/0 AWG C, F
PFLUG10-90 LUG 90 DEGREE METAL SIZE C,F 1/0 AWG C, F
PFLUG2 LUG STRAIGHT METAL SIZE C,F 2 AWG C, F
PFLUG2-90 LUG 90 DEGREE METAL SIZE C,F 2 AWG C, F
PFLUG20 LUG STRAIGHT METAL SIZE C,F 2/0 AWG C, F
PFLUG20-90 LUG 90 DEGREE METAL SIZE C,F 2/0 AWG C, F
PFLUG250 LUG STRAIGHT METAL SIZE C,F 250 MCM C, F
PFLUG250-90 LUG 90 DEGREE METAL SIZE C,F 250 MCM C, F
PFLUG3 LUG STRAIGHT METAL SIZE C,F 3 AWG C, F
PFLUG3-90 LUG 90 DEGREE METAL SIZE C,F 3 AWG C, F
PFLUG30 LUG STRAIGHT METAL SIZE C,F 3/0 AWG C, F
PFLUG30-90 LUG 90 DEGREE METAL SIZE C,F 3/0 AWG C, F
PFLUG300 LUG STRAIGHT METAL SIZE C,F 300 MCM C, F
PFLUG300-90 LUG 90 DEGREE METAL SIZE C,F 300 MCM C, F
PFLUG350 LUG STRAIGHT METAL SIZE C,F 350 MCM C, F
PFLUG350-90 LUG 90 DEGREE METAL SIZE C,F 350 MCM C, F
PFLUG4 LUG STRAIGHT METAL SIZE C,F 4 AWG C, F
PFLUG4-90 LUG 90 DEGREE METAL SIZE C,F 4 AWG C, F
PFLUG40 LUG STRAIGHT METAL SIZE C,F 4/0 AWG C, F
PFLUG40-90 LUG 90 DEGREE METAL SIZE C,F 4/0 AWG C, F
PFLUG400 LUG STRAIGHT METAL SIZE C,F 400 MCM C, F
PFLUG400-90 LUG 90 DEGREE METAL SIZE C,F 400 MCM C, F
PFLUG500 LUG STRAIGHT METAL SIZE C,F 500 MCM C, F
PFLUG500-90 LUG 90 DEGREE METAL SIZE C,F 500 MCM C, F
PFLUG600 LUG STRAIGHT METAL SIZE C,F 600 MCM C, F
PFLUG600-90 LUG 90 DEGREE METAL SIZE C,F 600 MCM C, F
PFLUG650 LUG STRAIGHT METAL SIZE C,F 650 MCM C, F
View More
