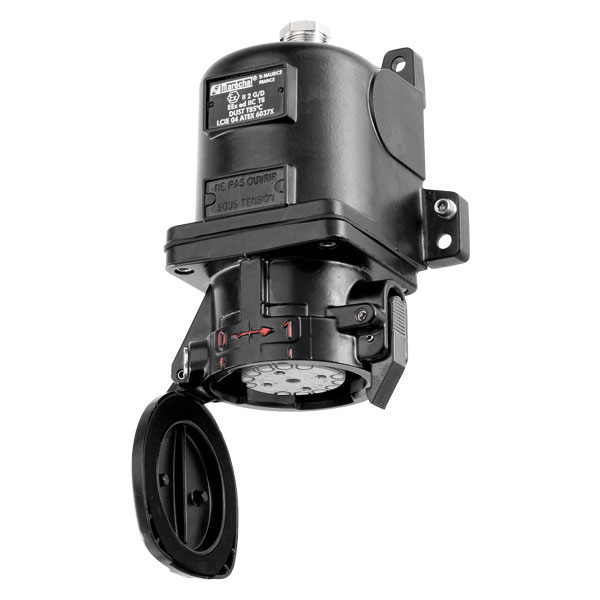

Images may not reflect actual product configuration
DX1 RECEPTACLE/BOX
262004634
Specifications
- 20 A
- 277/480 VAC
- IP65
| Rated Current (A) | 20 A |
|---|---|
| Rated Voltage (V) | 277/480 VAC |
| Contact Configuration | 2P+N+G |
| Ratings Information |
CURRENT INTERRUPTING |
| Environmental Rating |
IP 65 |
| Short Circuit Rating | 10 kA - CLOSE & WITHSTAND |
| Impact Rating | IK10 |
| Material | METAL |
| Metal Type | ALUMINUM PAINTED |
| Product Color | BLACK |
| Thread Size | 3/4" NPT |
| Cable Range | .430-.810" |
| Minimum Operating Temperature |
-13F -25C |
| Maximum Operating Temperature |
140F 60C |
| Wiring Capacity - Phase Contacts |
14 AWG – 8 AWG SCREW TERMINAL |
| Hazardous Ratings |
Zone 1 & 2 Gb T5-T6 Zone 21 & 22 tD T74C-T84C |
| Accessory Size | 8 |
| Base Drawing Number | 26-20xxx-xx.PDF |
| Instructions | meltric-instruction-dx.pdf |
