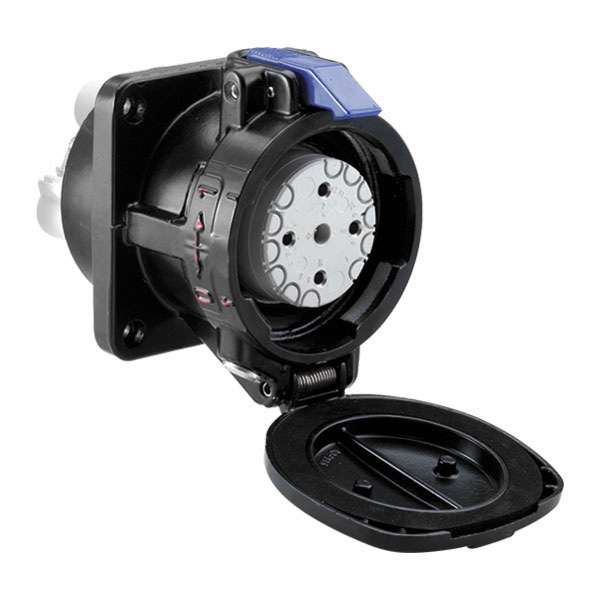

DX6 RECEPTACLE
2664147
Specifications
- 60 A
- 600 VAC
- IP65
| Rated Current (A) | 60 A |
|---|---|
| Rated Voltage (V) | 600 VAC |
| Contact Configuration | 3P+N+G |
| Ratings Information |
CURRENT INTERRUPTING |
| Environmental Rating |
IP 65 |
| Short Circuit Rating | 10 kA - CLOSE & WITHSTAND |
| Impact Rating | IK10 |
| Material | METAL |
| Metal Type | ALUMINUM PAINTED |
| Product Color | BLACK |
| Minimum Operating Temperature |
-40F -40C |
| Maximum Operating Temperature |
140F 60C |
| Wiring Capacity - Phase Contacts |
6 AWG – 1/0 AWG SCREW TERMINAL |
| Hazardous Ratings |
Zone 1 & 2 Gb T5-T6 Zone 21 & 22 tD T74C-T84C |
| Accessory Size | 9 |
| Base Drawing Number | 26-64xxx.PDF |
| Instructions | meltric-instruction-dx.pdf |
