What Does “Switch-Rated” Mean?

In industrial power systems, not all electrical connectors are created equal. The term “switch-rated” refers to a plug or receptacle that has been UL and CSA tested and approved to safely make and break electrical circuits under full load — just like a disconnect switch. In other words, a switch-rated device allows you to plug in or unplug equipment while energized, without the risk of arc flash or exposure to live parts.

Switch-rated electrical connectors, such as MELTRIC’s Switch-Rated Plugs and Receptacles, are UL and CSA listed for motor and branch circuit disconnect switching. They are approved by the National Electrical Code (NEC) as a line-of-sight disconnect switch, capable of handling up to 200 A and 100 hp motor circuits.

These ratings are not arbitrary — they’re achieved through rigorous endurance, overload, and short-circuit testing that far exceeds what is required for ordinary pin-and-sleeve devices.

The Problem with Traditional Electrical Connections

In many facilities, connecting or disconnecting electrical equipment requires extra steps — switching off a separate disconnect, verifying de-energization, and donning full PPE to meet NFPA 70E safety standards. Traditional plugs and receptacles often expose live parts when uncoupled, creating potential for arc flash incidents and shock hazards.

Pin-and-sleeve connectors, for example, depend on operator motion and can draw arcs during removal. Over time, contact wear and oxidation lead to poor conductivity, heat buildup, and premature failure. Maintenance becomes cumbersome, and safety compliance becomes an ongoing challenge.

Learn more about arc flash prevention and electrical safety.

How Switch-Rated Connectors Solve the Problem

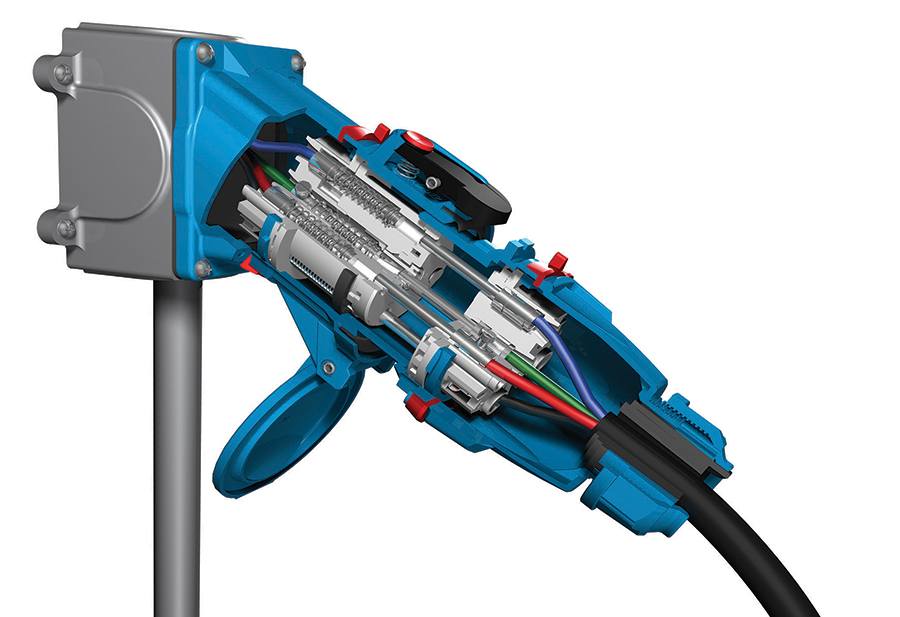

Switch-rated connectors integrate the safety of a switch into the convenience of a plug and receptacle. With MELTRIC’s DECONTACTOR™ technology, each device contains an enclosed arc chamber, a dead-front shutter, and spring-loaded, silver-nickel contacts that automatically de-energize the plug before removal.

When an operator presses the receptacle’s pawl, the built-in spring mechanism instantly opens the circuit — in less than 15 milliseconds — and ejects the plug to the “OFF” position. Any arc that occurs is safely contained within the internal arc chamber, making it impossible to draw an arc externally.

This design eliminates exposure to live parts, simplifies lockout/tagout, and allows for safe operation by mechanics — not just electricians.

Benefits of Switch-Rated Electrical Connectors

1. Enhanced Safety and Compliance
Switch-rated connectors make electrical safety simple. Because the plug is de-energized before removal, users can disconnect equipment without arc flash PPE. MELTRIC’s dead-front design fully encloses live contacts, meeting NFPA 70E and CSA Z462 definitions of “normal operation”.

2. Faster Maintenance and Less Downtime
Switch-rated devices transform maintenance into a true “plug-and-play” process. Replacement motors or equipment can be pre-wired, tested, and ready to connect. Changeouts take minutes instead of hours, cutting downtime by up to 50%.

→ See our Motor Plug Solutions for examples.

3. Simplified Lockout/Tagout
Every MELTRIC switch-rated plug includes a built-in lockout hole. Workers can insert a standard padlock directly into the plug to meet OSHA requirements — no separate hardware needed.

→ Learn about Lockout/Tagout Safety.

4. Reliability in Harsh Environments
Made from high-impact reinforced polyester or aluminum alloy, MELTRIC connectors resist corrosion, UV radiation, and chemicals. Silver-nickel contacts maintain low resistance, ensuring consistent electrical performance over 6,000+ operations.

→ Explore the DSN and DS Series for industrial environments.

5. Energy Efficiency
Because switch-rated contacts maintain tight, low-resistance connections, they minimize heat loss and energy waste. MELTRIC connectors are up to 30 times more energy-efficient over a 10-year lifespan compared to traditional pin-and-sleeve devices.

→ Discover how DECONTACTOR™ technology reduces energy loss.

MELTRIC’s Switch-Rated Advantage

MELTRIC pioneered switch-rated technology for the North American market by combining UL 2682 switch ratings with mechanical simplicity and durability. Each device passes electrical endurance and short-circuit make-and-withstand tests equivalent to UL 508 and UL 98 disconnect switches.

Models like the DSN Series feature:

  • Up to 100 kA short-circuit protection
  • Type 4X/IP69K watertight ratings
  • Compact, modular design with optional auxiliary contacts
  • Available in both poly and metal casings for flexibility across industrial environments

These features allow MELTRIC connectors to function as both a line-of-sight disconnect and a safe, reliable power connection in a single device.

Real-World Impact: Safe, Simple, and Compliant Connections

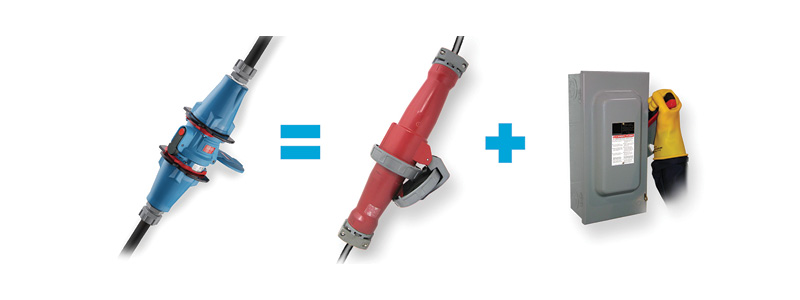

Whether in manufacturing, water treatment, food and beverage, or power generation, switch-rated connectors reduce risk and streamline operations. A single MELTRIC device replaces multiple components — the plug, receptacle, and disconnect switch — saving space, simplifying installation, and ensuring compliance.

By integrating safety into every connection, MELTRIC switch-rated plugs and receptacles protect workers, maintain uptime, and deliver peace of mind — every time power is connected or disconnected.
