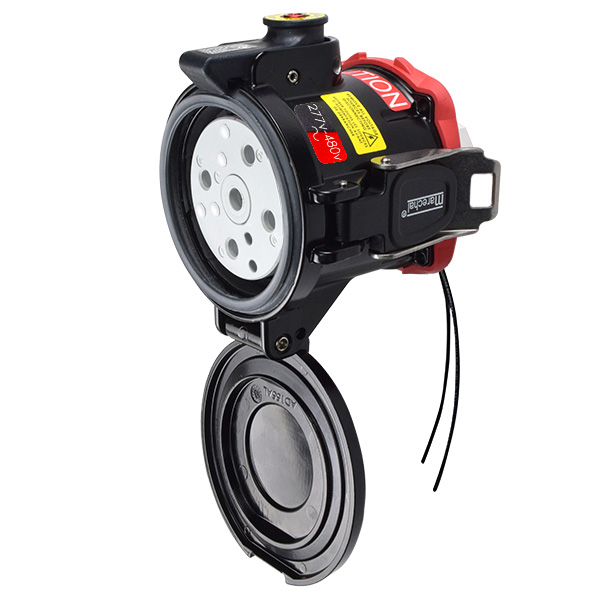

Images may not reflect actual product configuration

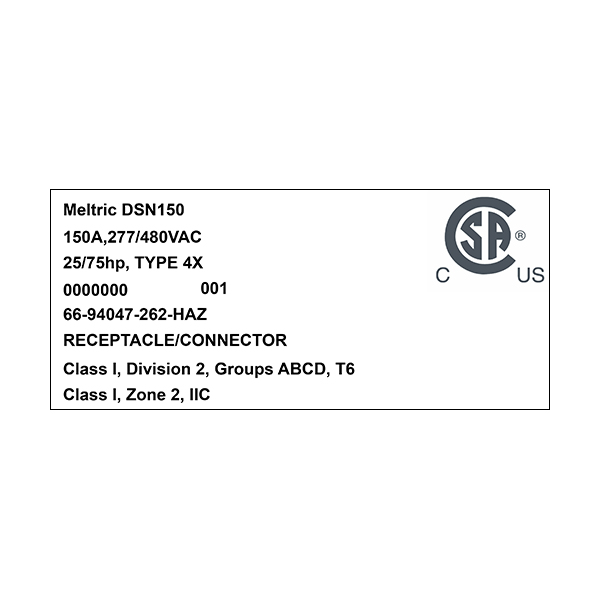

DSN150 HAZ RECEPTACLE
66-94047-262-HAZ
Specifications
- 150 A
- 277/480 VAC
- 25 hp/75 hp
| Rated Current (A) | 150 A |
|---|---|
| Rated Voltage (V) | 277/480 VAC |
| Horsepower Rating | 25 hp/75 hp |
| Contact Configuration | 3P+N+G |
| Auxiliary Contacts | +2 AUX |
| Ratings Information |
NON-CURRENT INTERRUPTING |
| Environmental Rating |
Type 4X IP 66/67 |
| Short Circuit Rating | 100 kA - CLOSE & WITHSTAND |
| Impact Rating | IK10 |
| Material | METAL |
| Metal Type | ALUMINUM |
| Product Color | BLACK |
| Minimum Operating Temperature |
-40F -40C |
| Maximum Operating Temperature |
104F 40C |
| Wiring Capacity - Phase Contacts |
4 AWG – 2/0 AWG SCREW TERMINAL |
| Hazardous Ratings |
Class I Zone IIC Class I Div 2 Groups A,B,C,D T6 |
| Applicable Standards |
cCSAus C22.2 No. 182.1-07 |
| Accessory Size | 5 |
| Base Drawing Number | 66-94xxx-xxx-haz.pdf |
| Instructions | meltric-instruction-zone2.pdf |
