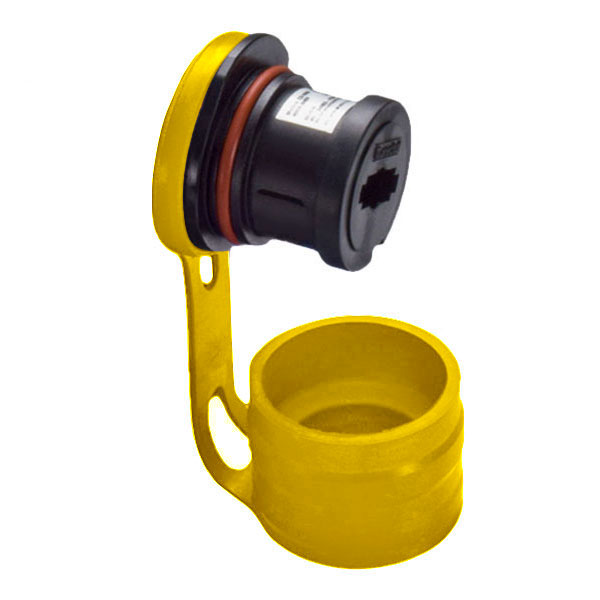

Images may not reflect actual product configuration
CS1000 RECEPTACLE
44-34003-P88
Specifications
- 400 A
- 600 VAC
- IP66/IP67
| Rated Current (A) | 400 A |
|---|---|
| Rated Voltage (V) | 600 VAC |
| Contact Configuration | L3 |
| Ratings Information |
NON-CURRENT INTERRUPTING |
| Environmental Rating |
IP 66/67 |
| Short Circuit Rating | 10 kA - WITHSTAND |
| Impact Rating | IK08 |
| Material | POLY |
| Product Color | BLACK |
| Minimum Operating Temperature |
-40F -40C |
| Maximum Operating Temperature |
140F 60C |
| Wiring Capacity - Phase Contacts | LUG TERMINAL |
| Applicable Standards |
UL 1691 cCSAus C22.2 No. 1691-12 |
| Accessory Size | M |
| Base Drawing Number | 44-3400x-P8x.pdf |
| Instructions | meltric-instruction-cs1000.pdf |
