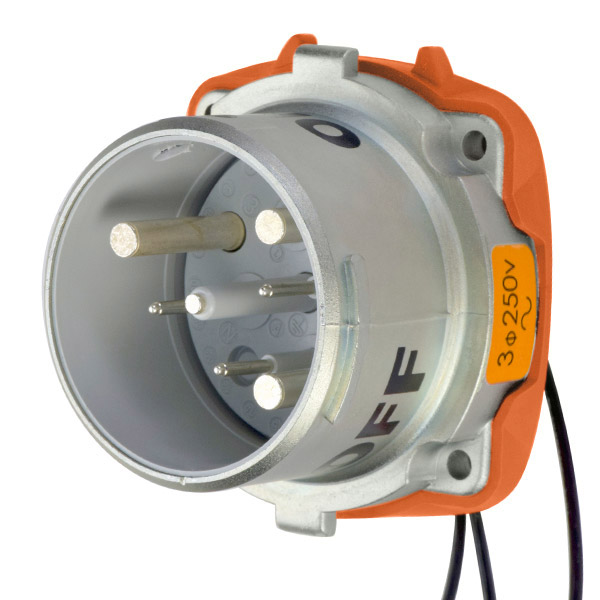

DS100C INLET
37-68173-C-K07-263
Specifications
- 100 A
- 250 VAC
- 20 hp
| Rated Current (A) | 100 A |
|---|---|
| Rated Voltage (V) | 250 VAC |
| Horsepower Rating | 20 hp |
| Contact Configuration | 3P+G |
| Auxiliary Contacts | +3 AUX |
| Ratings Information |
SWITCH RATED BRANCH CIRCUIT DISCONNECT SWITCH MOTOR CIRCUIT DISCONNECT SWITCH |
| Environmental Rating |
Type 4X IP 66/67 |
| Short Circuit Rating | 100 kA - CLOSE & WITHSTAND |
| Impact Rating | IK09 |
| Material | METAL |
| Metal Type | ZAMAK |
| Product Color | METAL |
| Minimum Operating Temperature |
-40F -40C |
| Maximum Operating Temperature |
140F 60C |
| Wiring Capacity - Phase Contacts |
10 AWG – 2 AWG SCREW TERMINAL |
| Applicable Standards |
UL 2682 UL 1682 cCSAus C22.2 No. 182.1-13 |
| Accessory Size | 4 |
| Base Drawing Number | 37-68xxx-c-kxx.PDF |
| Instructions | meltric-instruction-ds-dsn.pdf |
