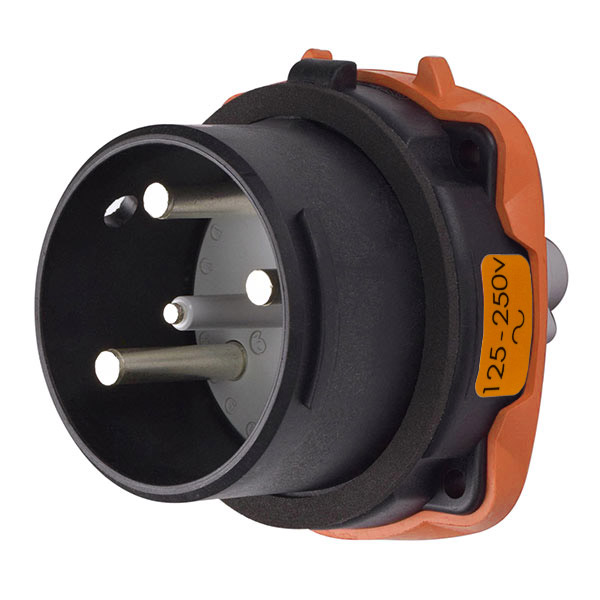

DS100C HAZ INLET
35-68176-C-K07-HAZ
Specifications
- 100 A
- 125/250 VAC
- Type 4X
- 5 hp/10 hp
| Rated Current (A) | 100 A |
|---|---|
| Rated Voltage (V) | 125/250 VAC |
| Horsepower Rating | 5 hp/10 hp |
| Contact Configuration | 2P+N+G |
| Auxiliary Contacts | NO AUX |
| Ratings Information |
NON-CURRENT INTERRUPTING |
| Environmental Rating |
Type 4X |
| Short Circuit Rating | 100 kA - CLOSE & WITHSTAND |
| Impact Rating | IK09 |
| Material | POLY |
| Product Color | BLACK |
| Minimum Operating Temperature |
-40F -40C |
| Maximum Operating Temperature |
104F 40C |
| Wiring Capacity - Phase Contacts |
10 AWG – 2 AWG SCREW TERMINAL |
| Applicable Standards |
cCSAus C22.2 No. 182.1-07 |
| Accessory Size | 4 |
| Base Drawing Number | 35-68xxx-C-Kxx-xxx-haz.pdf |
| Catalog | meltric-catalog-zone2-ds100c-en.pdf |
| Instructions | meltric-instruction-zone2.pdf |
