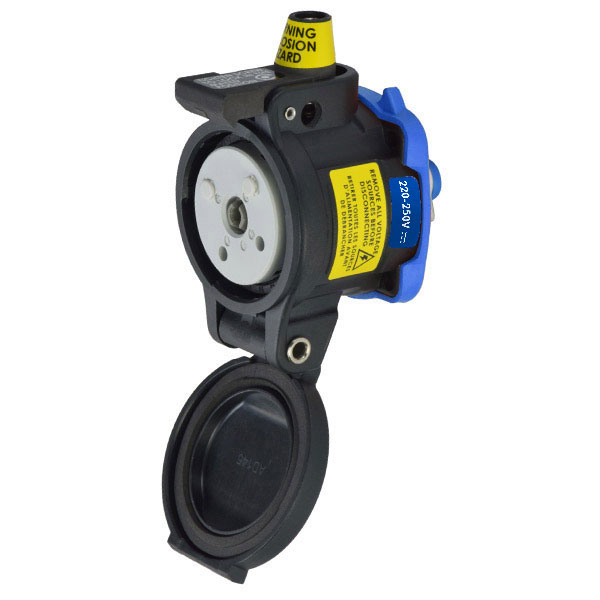

Images may not reflect actual product configuration

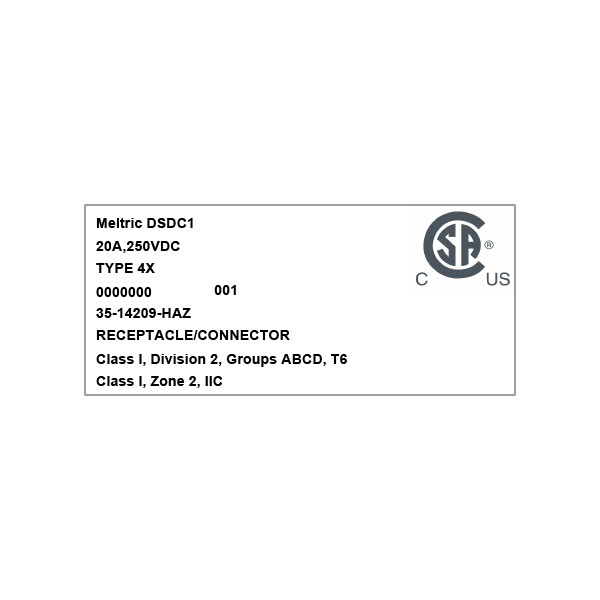

DSDC1 HAZ RECEPTACLE
35-14209-HAZ
Specifications
- 20 A
- 250 VDC
| Rated Current (A) | 20 A |
|---|---|
| Rated Voltage (V) | 250 VDC |
| Contact Configuration | 2P+G |
| Ratings Information |
NON-CURRENT INTERRUPTING |
| Environmental Rating |
Type 4X |
| Impact Rating | IK09 |
| Material | POLY |
| Product Color | BLACK |
| Minimum Operating Temperature |
-40F -40C |
| Maximum Operating Temperature |
104F 40C |
| Wiring Capacity - Phase Contacts |
14 AWG – 8 AWG SCREW TERMINAL |
| Applicable Standards |
cCSAus C22.2 No. 182.1-07 |
| Accessory Size | 2 |
| Catalog | meltric-catalog-zone2-dsdc-en.pdf |
| Instructions | meltric-instruction-zone2.pdf |
