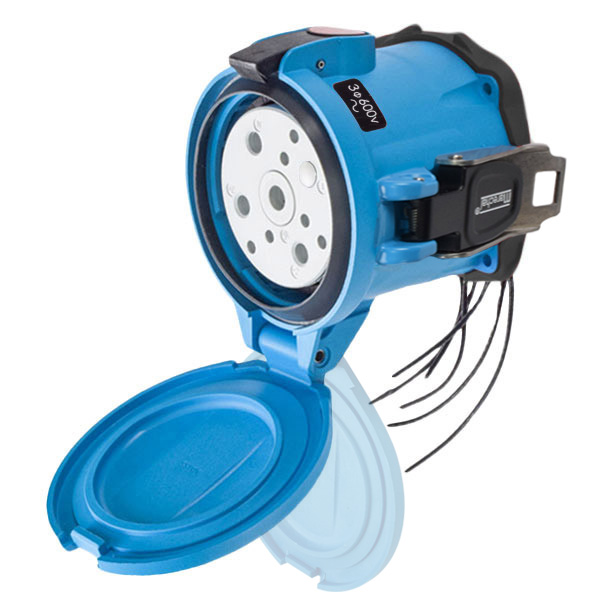

Images may not reflect actual product configuration

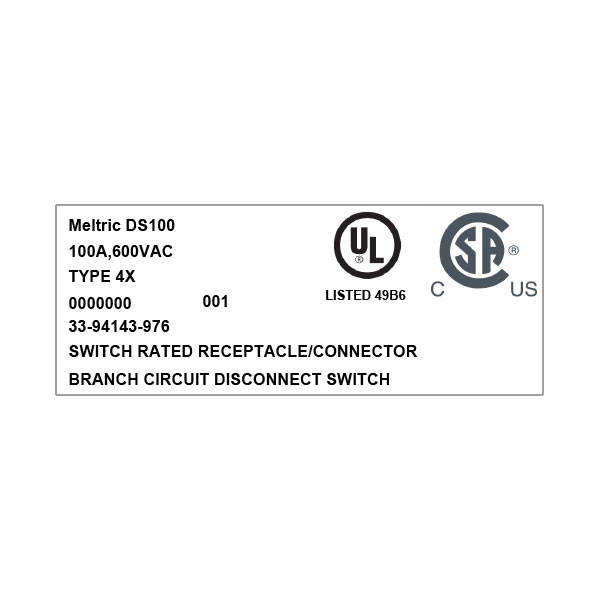

DS100 RECEPTACLE
33-94143-976
Specifications
- 100 A
- 600 VAC
- Type 4X
| Rated Current (A) | 100 A |
|---|---|
| Rated Voltage (V) | 600 VAC |
| Contact Configuration | 3P+G |
| Auxiliary Contacts | +6 AUX |
| Ratings Information |
SWITCH RATED BRANCH CIRCUIT DISCONNECT SWITCH |
| Environmental Rating |
Type 4X IP 66/67 |
| Short Circuit Rating | 100 kA - CLOSE & WITHSTAND |
| Impact Rating | IK09 |
| Material | POLY |
| Product Color | BLUE |
| Minimum Operating Temperature |
-40F -40C |
| Maximum Operating Temperature |
140F 60C |
| Wiring Capacity - Phase Contacts |
4 AWG – 2/0 AWG SCREW TERMINAL |
| Applicable Standards |
UL 2682 UL 1682 cCSAus C22.2 No. 182.1-13 |
| Accessory Size | 5 |
| Base Drawing Number | 33-94xxx.PDF |
| Catalog | meltric-catalog-ds100-en.pdf |
| Instructions | meltric-instruction-ds-dsn.pdf |
