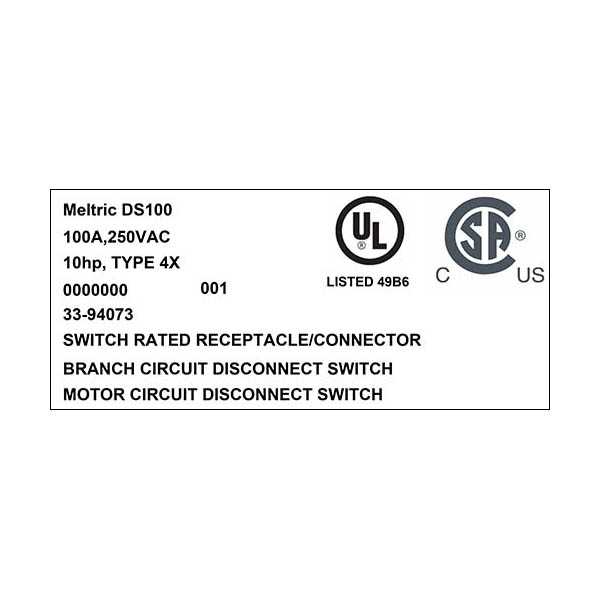

DS100 RECEPTACLE
33-94073
Specifications
- 100 A
- 250 VAC
- Type 4X
- 10 hp
Rated Current (A) | 100 A |
---|---|
Rated Voltage (V) | 250 VAC |
Horsepower Rating | 10 hp |
Contact Configuration | 3P+G |
Auxiliary Contacts | NO AUX |
Ratings Information |
SWITCH RATED BRANCH CIRCUIT DISCONNECT SWITCH MOTOR CIRCUIT DISCONNECT SWITCH |
Environmental Rating |
Type 4X IP 66/67 |
Short Circuit Rating | 100 kA - CLOSE & WITHSTAND |
Impact Rating | IK09 |
Material | POLY |
Product Color | BLUE |
Minimum Operating Temperature |
-40F -40C |
Maximum Operating Temperature |
140F 60C |
Wiring Capacity - Phase Contacts |
4 AWG – 2/0 AWG SCREW TERMINAL |
Applicable Standards |
UL 2682 UL 1682 cCSAus C22.2 No. 182.1-13 |
Accessory Size | 5 |
Base Drawing Number | 33-94xxx.PDF |
Catalog | meltric-catalog-ds100-en.pdf |
Instructions | meltric-instruction-ds-dsn.pdf |
