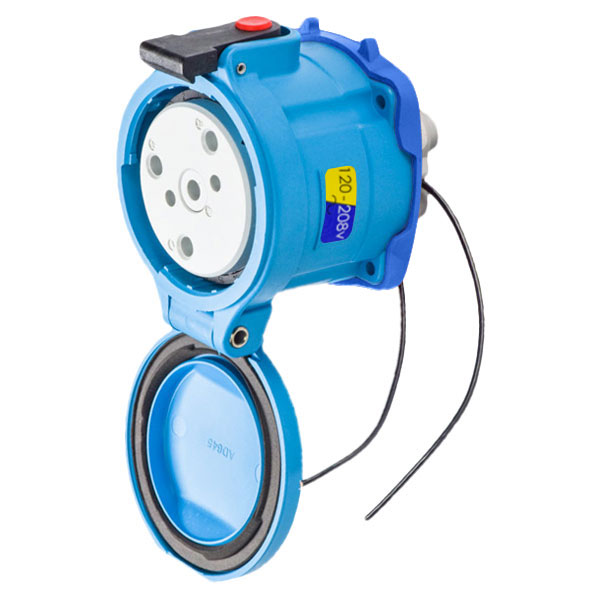

DS100C INLET
33-68236-C-K16-972
Specifications
- 100 A
- 120/208 VAC
- 5 hp/10 hp
| Rated Current (A) | 100 A |
|---|---|
| Rated Voltage (V) | 120/208 VAC |
| Horsepower Rating | 5 hp/10 hp |
| Contact Configuration | 2P+N+G |
| Auxiliary Contacts | +2 AUX |
| Ratings Information |
SWITCH RATED BRANCH CIRCUIT DISCONNECT SWITCH MOTOR CIRCUIT DISCONNECT SWITCH |
| Environmental Rating |
Type 4X IP 66/67 |
| Short Circuit Rating | 100 kA - CLOSE & WITHSTAND |
| Impact Rating | IK08 |
| Material | POLY |
| Product Color | BLUE |
| Minimum Operating Temperature |
-40F -40C |
| Maximum Operating Temperature |
140F 60C |
| Wiring Capacity - Phase Contacts |
10 AWG – 2 AWG SCREW TERMINAL |
| Applicable Standards |
UL 2682 UL 1682 cCSAus C22.2 No. 182.1-13 |
| Accessory Size | 4 |
| Base Drawing Number | 33-68xxx-c-kxx.PDF |
| Instructions | meltric-instruction-ds-dsn.pdf |
