Images may not reflect actual product configuration

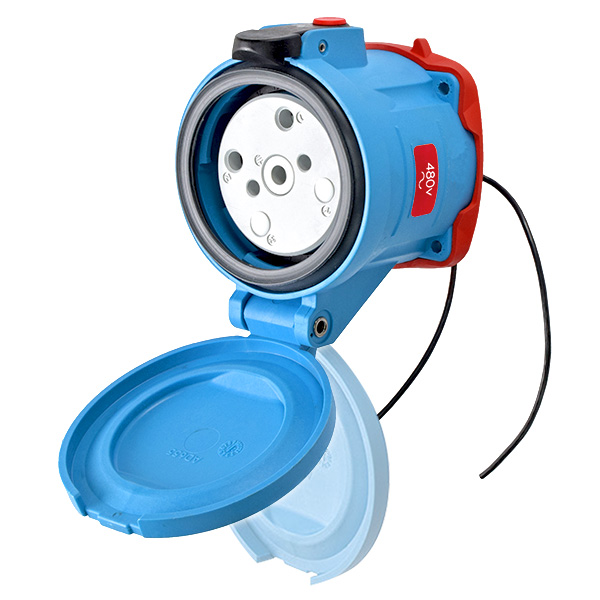

DS60 RECEPTACLE
33-64042-972
Specifications
- 60 A
- 480 VAC
- 15 hp
| Rated Current (A) | 60 A |
|---|---|
| Rated Voltage (V) | 480 VAC |
| Horsepower Rating | 15 hp |
| Contact Configuration | 2P+G |
| Auxiliary Contacts | +2 AUX |
| Ratings Information |
SWITCH RATED BRANCH CIRCUIT DISCONNECT SWITCH MOTOR CIRCUIT DISCONNECT SWITCH |
| Environmental Rating |
Type 4X IP 66/67 IP 69 |
| Short Circuit Rating | 100 kA - CLOSE & WITHSTAND |
| Impact Rating | IK09 |
| Material | POLY |
| Product Color | BLUE |
| Wiring Capacity - Phase Contacts |
10 AWG – 2 AWG SCREW TERMINAL |
| Applicable Standards |
UL 2682 UL 1682 cCSAus C22.2 No. 182.1-13 |
| Accessory Size | 4 |
| Base Drawing Number | 33-64xxx.PDF |
| Instructions | meltric-instruction-ds-dsn.pdf |
