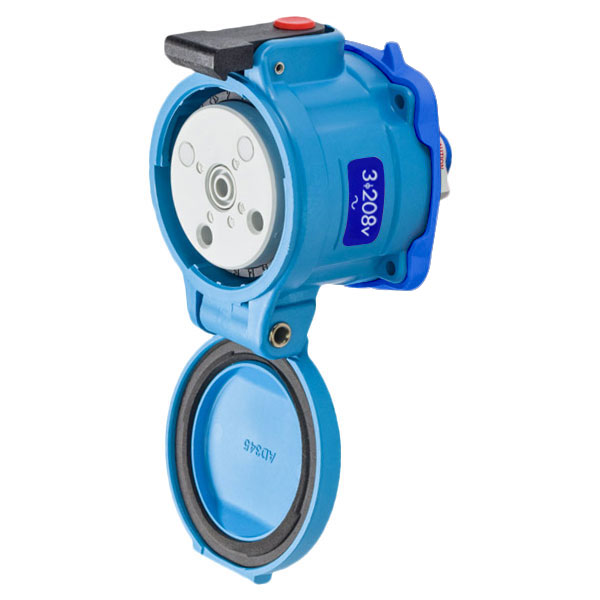

Images may not reflect actual product configuration
DSDC3 RECEPTACLE
33-34209
Specifications
- 30 A
- 250 VDC
- Type 3R
| Rated Current (A) | 30 A |
|---|---|
| Rated Voltage (V) | 250 VDC |
| Contact Configuration | 2P+G |
| Ratings Information |
NON-CURRENT INTERRUPTING |
| Environmental Rating |
Type 3R |
| Impact Rating | IK09 |
| Material | POLY |
| Product Color | BLUE |
| Minimum Operating Temperature |
-40F -40C |
| Maximum Operating Temperature |
140F 60C |
| Wiring Capacity - Phase Contacts |
14 AWG – 4 AWG SCREW TERMINAL |
| Applicable Standards |
UL 1682 cCSAus C22.2 No. 182.1-13 |
| Accessory Size | 3 |
| Base Drawing Number | 33-34xxx-xxx.pdf |
| Instructions | meltric-instruction-dsdc.pdf |
