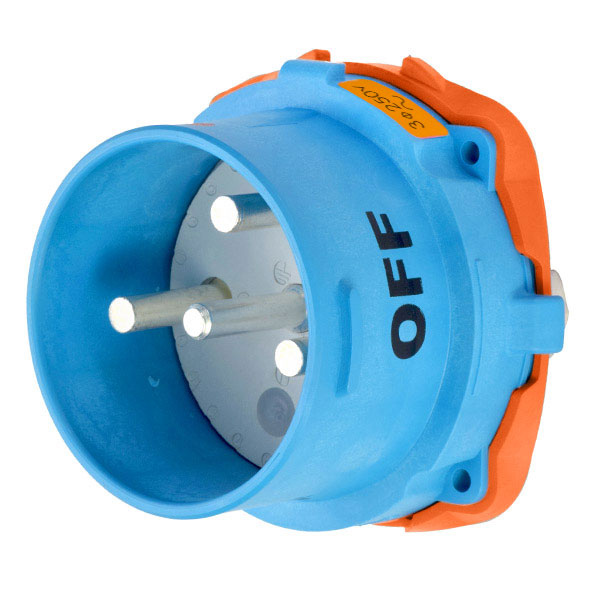

DR150 INLET

31-98173-K07-A155

Specifications

  • 150A
  • 250 VAC
  • Type 4X
Rated Current (A) 150A
Rated Voltage (V) 250 VAC
Contact Configuration 3P+G
Auxiliary Contacts NO AUX
Ratings Information CURRENT INTERRUPTING
Environmental Rating Type 4X
IP 66/67
Short Circuit Rating 100 KA - MAKE & WITHSTAND
Impact Rating IK08
Material POLY
Product Color BLUE
Minimum Operating Temperature -40F
-40C
Maximum Operating Temperature 140F
60C
Wiring Capacity - Phase Contacts 4 AWG – 2/0 AWG
SCREW TERMINAL
Applicable Standards UL 1682
cCSAus
C22.2 No. 182.1-13
Option(1) WITH NO LOCKOUT HOLE
Accessory Size 5
Base Drawing Number 31-98xxx-kxx.PDF
Catalog meltric-catalog-dr150-en.pdf
Instructions meltric-instruction-dr-dr7c-ds7c.pdf
