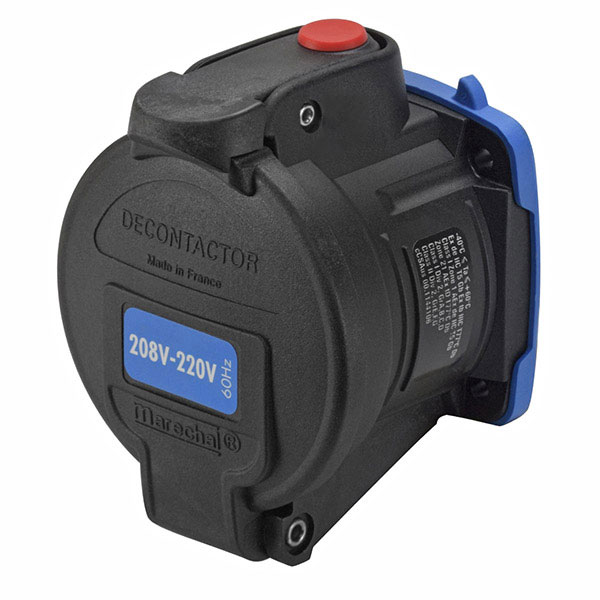

Images may not reflect actual product configuration
DXN30 RECEPTACLE
22-34045-R
Specifications
- 30 A
- 277 VAC
- IP66/IP67
- 3 hp
| Rated Current (A) | 30 A |
|---|---|
| Rated Voltage (V) | 277 VAC |
| Horsepower Rating | 3 hp |
| Contact Configuration | 1P+N+G |
| Auxiliary Contacts | NO AUX |
| Ratings Information |
CURRENT INTERRUPTING |
| Environmental Rating |
IP 66/67 |
| Short Circuit Rating | 25 kA - CLOSE & WITHSTAND |
| Impact Rating | IK09 |
| Material | POLY |
| Product Color | BLACK |
| Minimum Operating Temperature |
-40F -40C |
| Maximum Operating Temperature |
140F 60C |
| Wiring Capacity - Phase Contacts |
14 AWG – 6 AWG SCREW TERMINAL |
| Hazardous Ratings |
-40C < Ta < +60C Class l Zone1 AEx de llC T5 Gb -40C < Ta < +60C Zone 21 AEx tD T77C Db Class I Div 2 Gr A,B,C,D Class II Div 2 Gr E,F,G |
| Applicable Standards |
cCSAus C22.2 No. 182.1-13 |
| Option(1) | SELF-RETURNING LID |
| Accessory Size | 2 |
| Base Drawing Number | 22-34xxx.pdf |
| Catalog | meltric-catalog-dxn30-en.pdf |
| Instructions | meltric-instruction-dxn.pdf |
