Industrial environments demand electrical connections that deliver high amperage, maximum uptime, and uncompromising safety. Nowhere is this more critical than with 200 amp electrical plugs in industrial applications, where equipment is often running continuously, exposed to harsh conditions, and vital to production.
Traditional pin-and-sleeve devices and hardwired connections struggle to meet these demands. They expose workers to arc-flash risk, slow down changeouts, and require additional disconnects to meet code.
MELTRIC’s DS Series Switch-Rated plugs and receptacles solve these problems with a built-in load-break switch, dead-front safety shutter, and performance ratings up to 200 A and 100 horsepower.
DS Series: The MELTRIC Solution for 200A Industrial Plug Applications
MELTRIC DS plugs and receptacles bring the safety of a disconnect switch and the convenience of a plug into a single device. For operations relying on high-horsepower motors or large equipment, the DS200 is the industry-leading choice.
Switch-Rated Performance Up to 200A / 100 hp
The DS Series is UL/CSA rated for motor and branch-circuit disconnect switching, which means users can safely make or break connections under full load—something standard industrial plugs cannot do.
This eliminates the need for:
- Mechanical interlocks
- Auxiliary disconnect switches
- Additional line-of-sight disconnects
Learn more:
🔗 https://www.meltric.com/products/switch-rated

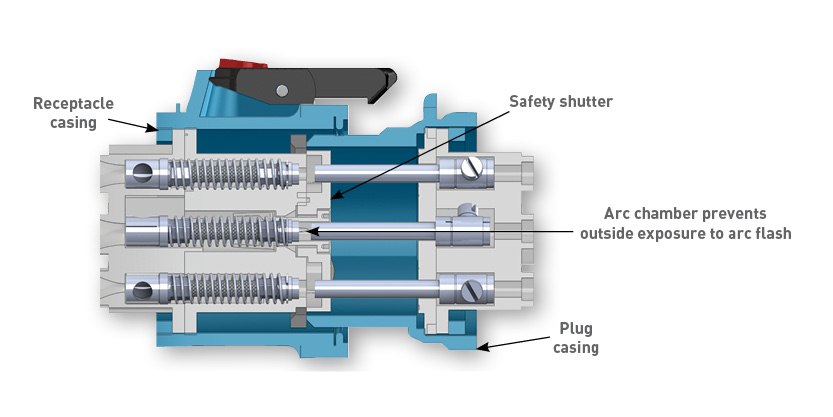

Dead-Front Construction & Built-In Arc-Flash Prevention
Traditional connectors leave workers exposed to live contacts. The DS Series uses:
- A dead-front safety shutter
- Enclosed arc chambers
- A spring-loaded mechanism that breaks the circuit before the plug can be removed
This prevents exposure to arc-flash energy during disconnection—one of the most significant safety hazards in industrial power delivery.

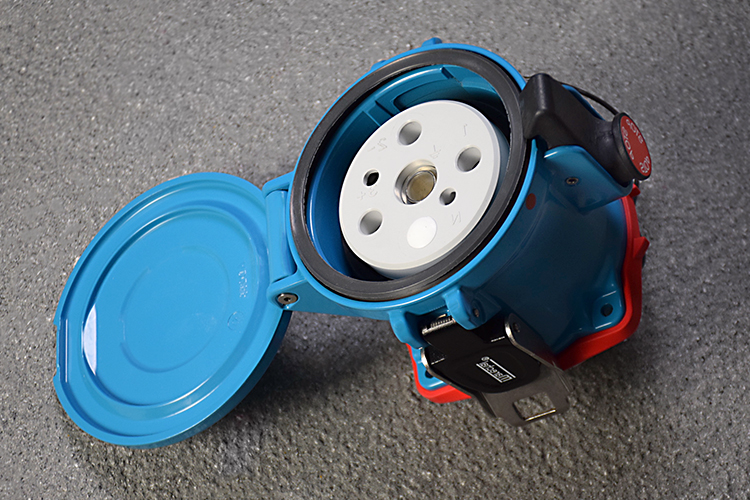

Rugged Type 4X/IP69K Protection
DS200 devices are engineered for the harshest environments:
- Corrosive washdown areas
- Dust and debris
- High-pressure, high-temperature cleaning
- Outdoor installations

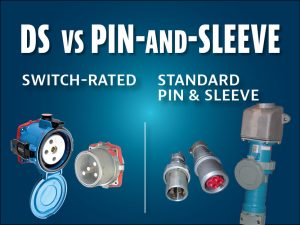

DS vs. Pin-and-Sleeve: What Makes MELTRIC Different
Pin-and-sleeve devices remain common in industry—but they lack the key safety and reliability features required for modern operations.
Butt-Style Silver-Nickel Contacts vs. Brass Sliding Contacts
MELTRIC uses spring-loaded, butt-style silver-nickel contacts, which:
- Maintain consistent pressure
- Resist wear and oxidation
- Maintain low resistance over thousands of operations
Pin-and-sleeve designs rely on brass sliding contacts that:
- Wear quickly
- Heat up over time
- Are sensitive to contamination
- Cannot break load safely
No Ring-Tightening or Thread Wear
Pin-and-sleeve devices require users to tighten a threaded ring.
If the ring isn’t tightened perfectly, the device loses its IP rating, causing failures, moisture ingress, overheating, or unexpected shutdowns.
MELTRIC devices achieve full watertightness automatically when the plug is latched.
True Load-Break Capability
Pin-and-sleeve connectors are not load break rated.
Removing the plug under load can produce dangerous arcs.
MELTRIC DS Series eliminates the risk entirely—the switching mechanism disconnects the load before separation.
DS vs. Hardwiring: Cut Changeout Time by 50%
Hardwiring is the slowest, most labor-heavy way to connect equipment. It requires an electrician for every replacement—day, night, or weekend.
Plug-and-Play Equipment Replacement
With DS Series devices, equipment changeouts are simple:
- Press the OFF button
- Remove the plug
- Lockout/Tagout
- Replace equipment
- Plug back in
No wiring. No tools. No waiting.
No Waiting for Electricians
Maintenance teams can perform electrical disconnections safely without requiring certified electricians onsite.
Faster Troubleshooting & Maintenance
Pre-wired motors and equipment can be swapped instantly, reducing downtime by up to 50%.
Arc-Flash Advantages with Switch-Rated Technology
Electrical safety is a priority across all industrial sectors. DS devices help simplify compliance with NFPA 70E.
Disconnect Without PPE
Because MELTRIC devices are considered normal operation, workers can disconnect equipment without arc-rated PPE.
Dead-Front Construction Eliminates Exposure
The shutter closes automatically, preventing access to live contacts.
Visual Verification of De-energization
Removing the plug provides built-in verification — no test instruments needed.
🎥 Watch how MELTRIC devices eliminate arc-flash exposure:
https://www.youtube.com/@MeltricCorporation

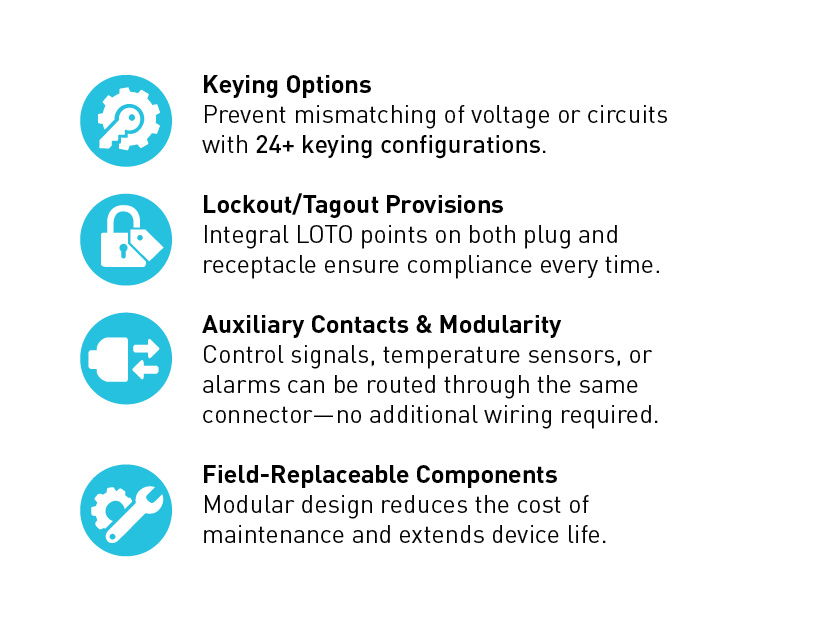

Additional DS Series Features for Industrial Reliability

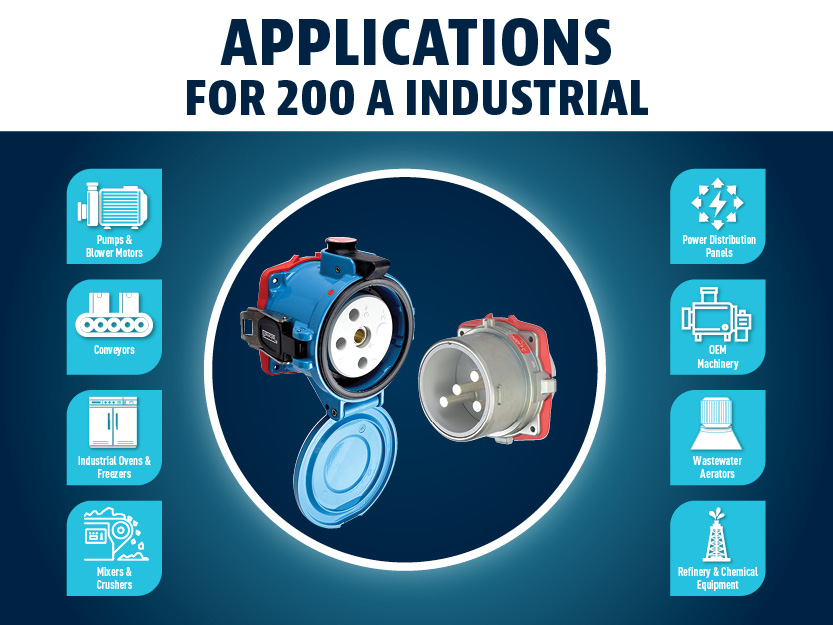

Applications for 200A Industrial Plugs
The DS200 is ideal for:
- Pump and blower motors
- Conveyors
- Industrial ovens and freezers
- Mixers and crushers
- Power distribution panels
- OEM machinery
- Wastewater aerators
- Refinery and chemical equipment
Get Free MELTRIC Product Through Our FPO Program
MELTRIC offers a Free Product Offer (FPO) that allows qualified facilities to try DS devices at no cost.
🔗 https://pages.meltric.com/fpo
This is an excellent way to validate the performance of DS200 plugs in your real-world application while reducing upfront cost.
Conclusion
When evaluating 200 amp electrical plugs for industrial applications, safety, uptime, and reliability must come first. MELTRIC’s DS Series provides the safest load-break capability, the fastest equipment changeouts, and the most robust construction available.
If your goal is to reduce arc-flash risk, increase productivity, and simplify compliance—there is no better choice than the DS200 Switch-Rated plug and receptacle.
