SP RECEPTACLE

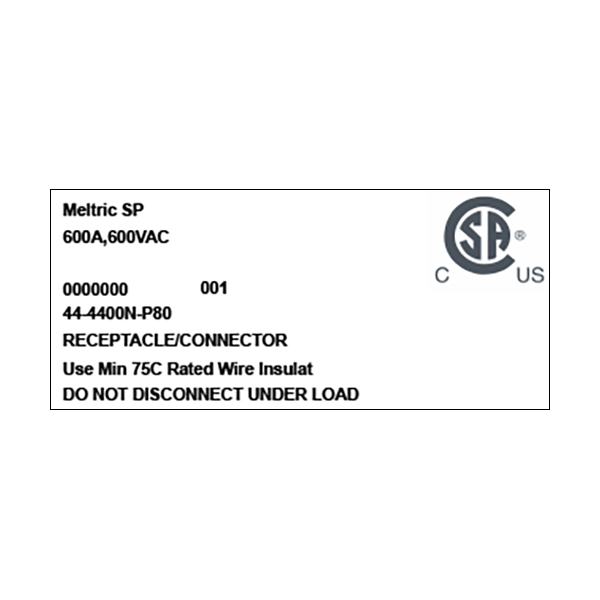

44-4400N-P80
Specifications
- 600 A
- 600 VAC
- IP66/IP67
| Rated Current (A) | 600 A |
|---|---|
| Rated Voltage (V) | 600 VAC |
| Contact Configuration | N |
| Auxiliary Contacts | +2 AUX |
| Ratings Information |
NON-CURRENT INTERRUPTING |
| Environmental Rating |
IP 66/67 |
| Short Circuit Rating | 30 kA - WITHSTAND |
| Impact Rating | IK08 |
| Material | POLY |
| Product Color | BLACK |
| Minimum Operating Temperature |
-15F -26C |
| Maximum Operating Temperature |
140F 60C |
| Wiring Capacity - Phase Contacts |
2/0 AWG – 750 MCM LUG TERMINAL |
| Applicable Standards |
cCSAus C22.2 No. 182.1-07 |
| Accessory Size | S |
| Base Drawing Number | 44-4400x-P80.pdf |
| Catalog | meltric-catalog-sp-en.pdf |
| Instructions | meltric-instruction-sp.pdf |
