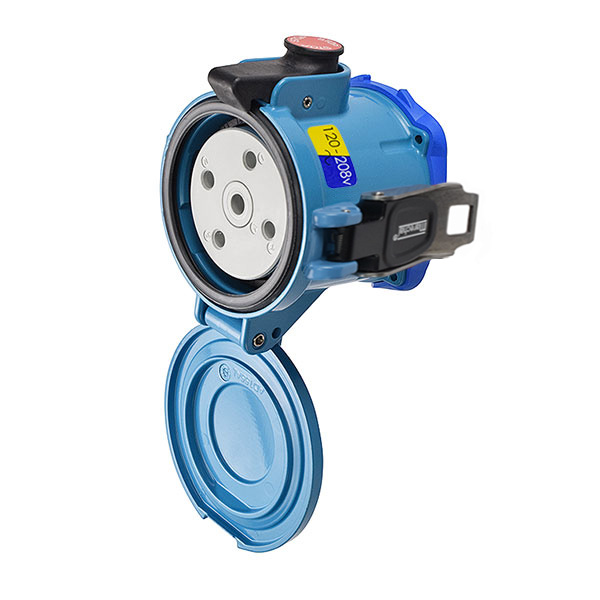

DR150 RECEPTACLE
39-94237-K16
Specifications
- 150 A
- 120/208 VAC
- Type 4X & IP69
| Rated Current (A) | 150 A |
|---|---|
| Rated Voltage (V) | 120/208 VAC |
| Contact Configuration | 3P+N+G |
| Auxiliary Contacts | NO AUX |
| Ratings Information |
CURRENT INTERRUPTING |
| Environmental Rating |
Type 4X IP 66/67 IP 69 |
| Short Circuit Rating | 100 kA - CLOSE & WITHSTAND |
| Impact Rating | IK10 |
| Material | METAL |
| Metal Type | ALUMINUM |
| Product Color | BLUE |
| Minimum Operating Temperature |
-40F -40C |
| Maximum Operating Temperature |
140F 60C |
| Wiring Capacity - Phase Contacts |
4 AWG – 2/0 AWG SCREW TERMINAL |
| Applicable Standards |
UL 1682 cCSAus C22.2 No. 182.1-13 |
| Accessory Size | 5 |
| Base Drawing Number | 39-94xxx-kxx.PDF |
| Catalog | meltric-catalog-dr150-en.pdf |
| Instructions | meltric-instruction-dr-dr7c-ds7c.pdf |
