Images may not reflect actual product configuration

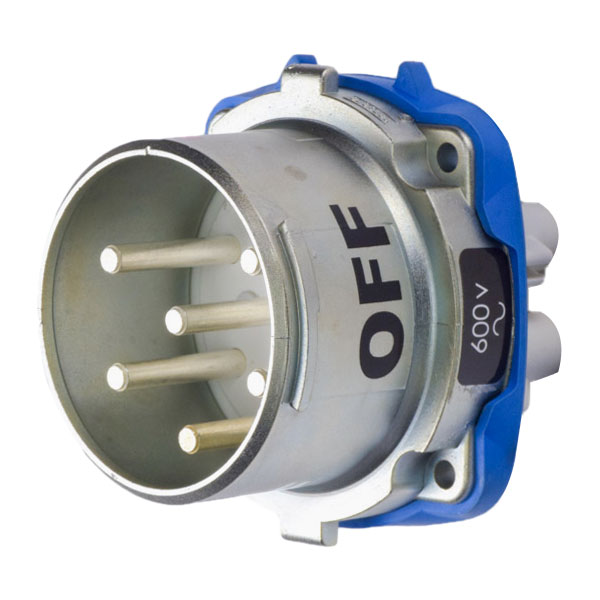

DS7c INLET
37-38551
Specifications
- 30 A
- 600 VAC/130 VDC
- IP66/IP67/IP69
| Rated Current (A) | 30 A |
|---|---|
| Rated Voltage (V) | 600 VAC/130 VDC |
| Contact Configuration | 5P+G |
| Auxiliary Contacts | NO AUX |
| Ratings Information |
CURRENT INTERRUPTING |
| Environmental Rating |
IP 66/67/69 |
| Impact Rating | IK09 |
| Material | METAL |
| Metal Type | ALUMINUM |
| Product Color | BLUE |
| Minimum Operating Temperature |
-40F -40C |
| Maximum Operating Temperature |
140F 60C |
| Wiring Capacity - Phase Contacts |
14 AWG – 8 AWG SCREW TERMINAL |
| Accessory Size | 4 |
| Base Drawing Number | 37-385xx.pdf |
| Instructions | meltric-instruction-ds-dsn.pdf |
