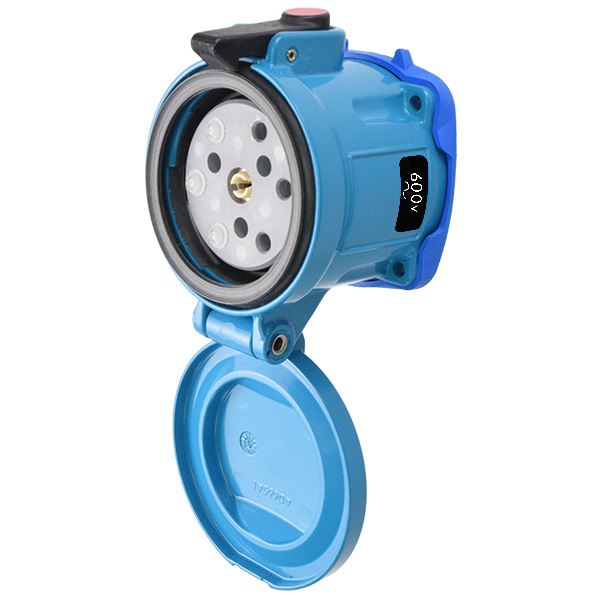

DS7c RECEPTACLE
37-34531-173
Specifications
- 30 A
- 600 VAC/130 VDC
- IP66/IP67/IP69
| Rated Current (A) | 30 A |
|---|---|
| Rated Voltage (V) | 600 VAC/130 VDC |
| Contact Configuration | 3P+G |
| Auxiliary Contacts | +3 AUX |
| Ratings Information |
CURRENT INTERRUPTING |
| Environmental Rating |
IP 66/67/69 |
| Impact Rating | IK09 |
| Material | METAL |
| Metal Type | ALUMINUM |
| Product Color | BLUE |
| Minimum Operating Temperature |
-40F -40C |
| Maximum Operating Temperature |
140F 60C |
| Wiring Capacity - Phase Contacts |
14 AWG – 8 AWG SCREW TERMINAL |
| Accessory Size | 4 |
| Base Drawing Number | 37-345xx.pdf |
| Catalog | meltric-catalog-ds7c-dr7c-en.pdf |
| Instructions | meltric-instruction-dr-dr7c-ds7c.pdf |
