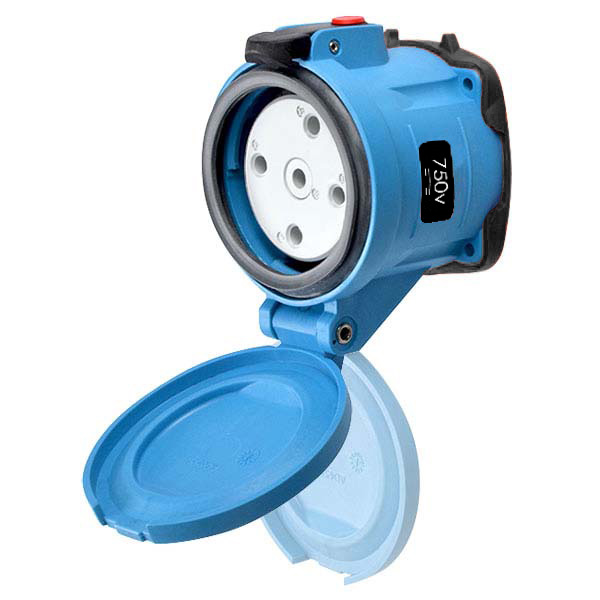

DSDC6 RECEPTACLE

33-64158-S69

Specifications

  • 30 A
  • 750 VDC
  • Type 4X & IP69
Rated Current (A) 30 A
Rated Voltage (V) 750 VDC
Contact Configuration 2P+G
Ratings Information NON-CURRENT INTERRUPTING
Environmental Rating Type 4X
IP 66/67
IP 69
Impact Rating IK09
Material POLY
Product Color BLUE
Minimum Operating Temperature -40F
-40C
Maximum Operating Temperature 140F
60C
Wiring Capacity - Phase Contacts 10 AWG – 2 AWG
SCREW TERMINAL
Accessory Size 4
Base Drawing Number 33-64xxx-xxx.pdf
Catalog meltric-catalog-dsdc-en.pdf
Instructions meltric-instruction-dsdc.pdf
