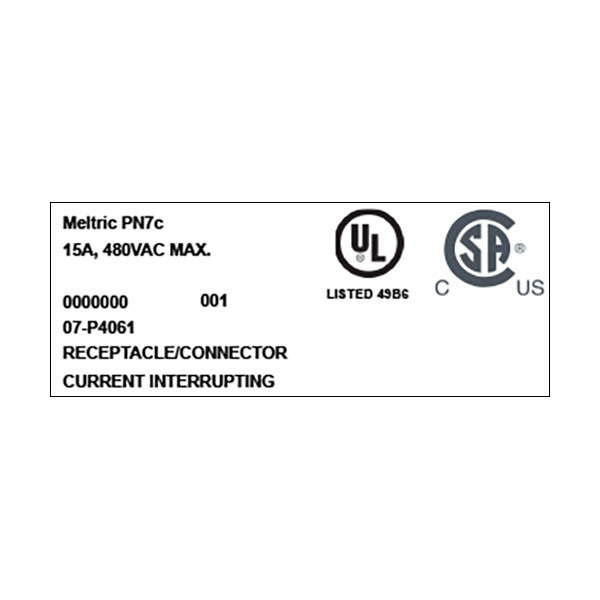

PN7c RECEPTACLE
07-P4061
Specifications
- 15 A
- 480 VAC
- IP66/IP67
| Rated Current (A) | 15 A |
|---|---|
| Rated Voltage (V) | 480 VAC |
| Contact Configuration | 6P+G |
| Ratings Information |
CURRENT INTERRUPTING |
| Environmental Rating |
IP 66/67 |
| Impact Rating | IK09 |
| Material | METAL |
| Metal Type | ZAMAK |
| Product Color | BLUE |
| Minimum Operating Temperature |
-40F -40C |
| Maximum Operating Temperature |
140F 60C |
| Wiring Capacity - Phase Contacts |
18 AWG – 10 AWG SCREW TERMINAL |
| Applicable Standards |
UL 1682 cCSAus C22.2 No. 94.2-15 |
| Accessory Size | 1 |
| Base Drawing Number | 07-p40x1.pdf |
| Catalog | meltric-catalog-pn7c-en.pdf |
| Instructions | meltric-instruction-pn.pdf |
