RECEPTACLE Please contact customer service for configurations that are not shown.
Select Part Number Description Amp Voltage Phasing HP Rating Environmental Rating

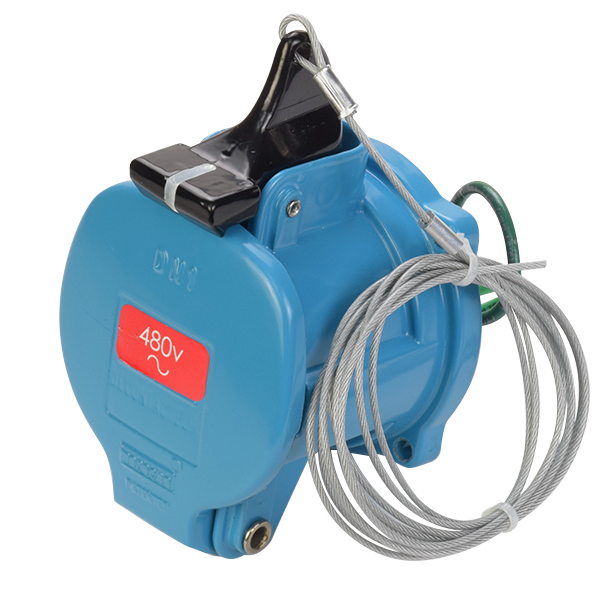

17-14061-348-A188 DN9c RECEPTACLE 20A 480 VAC/130 VDC 6P+G 5HP IP54/IP55
17-14071-348-A188 DN9c RECEPTACLE 20A 480 VAC/130 VDC 7P+G 5HP IP54/IP55
17-14080-348-A188-HP DN9c RECEPTACLE 20A 50 V 8P IP66
17-14081-348-A188 DN9c RECEPTACLE 20A 480 VAC/130 VDC 8P+G 5HP IP54/IP55
17-14081-348-A188-HP DN9c RECEPTACLE 20A 480 VAC/130 VDC 8P+G 5HP IP66
17-14090-348-A188 DN9c RECEPTACLE 20A 50 V 9P IP54/IP55
ACCESSORY HANDLE
Select Part Number Description Size
513P0D30443 HANDLE w/CABLE RANGE SELF EJECTING POLY BLUE SIZE 3 .390-1.180 in 3
513P0N05443 HANDLE w/NPT SELF EJECTING POLY BLUE SIZE 3 1/2" NPT Apx 0.35-0.52 in 3
513P0N07443 HANDLE w/NPT SELF EJECTING POLY BLUE SIZE 3 3/4" NPT Apx 0.52-0.68 in 3
513P0N10443 HANDLE w/NPT SELF EJECTING POLY BLUE SIZE 3 1" NPT Apx 0.68-0.98 in 3
513P0N12443 HANDLE w/NPT SELF EJECTING POLY BLUE SIZE 3 1 1/4" NPT Apx 0.98-1.47 in 3
593P0N07443 HANDLE w/NPT SELF EJECTING METAL BLUE SIZE 3 3/4" NPT Apx 0.44-0.81 in 3
593P0N10443 HANDLE w/NPT METAL BLUE SIZE 3 1" NPT Apx 0.75-1.00 in 3
593P0N12443 HANDLE w/NPT SELF EJECTING METAL BLUE SIZE 3 1 1/4" NPT Apx 0.88-1.38 in 3
713P0S18443 HANDLE w/CLAMP & BUSHING SELF EJECTING POLY BLUE SIZE 3 1.000-1.125 in 3
713P0S20443 HANDLE w/CLAMP & BUSHING SELF EJECTING POLY BLUE SIZE 3 1.125-1.250 in 3
713P0S22443 HANDLE w/CLAMP & BUSHING SELF EJECTING POLY BLUE SIZE 3 1.250-1.375 in 3
793P0DS1443 HANDLE w/CORD GRIP SELF EJECTING METAL BLUE SIZE 3 FOR SELF-EJECTING 1" NPT .770-.850 in 3
View More
ACCESSORY ANGLE
Select Part Number Description Size
593M0 ANGLE ADAPTER STRAIGHT ADAPTER METAL BLUE SIZE 3 3
593M3 ANGLE ADAPTER 30 DEGREE METAL BLUE SIZE 3 3
593M7 ANGLE ADAPTER 70 DEGREE METAL BLUE SIZE 3 3
793M3FS ANGLE ADAPTER 30 DEGREE METAL BLUE SIZE 3 3

ACCESSORY BOX
Select Part Number Description Size
793C3N05 BOX/ANGLE ADAPTER 30 DEGREE METAL BLUE SIZE 3 1/2" NPT 3
793C3N07 BOX/ANGLE ADAPTER 30 DEGREE METAL BLUE SIZE 3 3/4" NPT 3
793C3N10 BOX/ANGLE ADAPTER 30 DEGREE METAL BLUE SIZE 3 1" NPT 3
793C3N12 BOX/ANGLE ADAPTER 30 DEGREE METAL BLUE SIZE 3 1 1/4" NPT 3
7T1F0N05 BOX METAL GRAY SIZE 1,2,3 1/2" NPT 1, 2, 3
7T1F0N07 BOX METAL GRAY SIZE 1,2,3 3/4" NPT 1, 2, 3
7T1F0N10 BOX METAL GRAY SIZE 1,2,3 1" NPT 1, 2, 3
7T1F0N12 BOX METAL GRAY SIZE 1,2,3 1 1/4" NPT 1, 2, 3
View More
ACCESSORY MISC
Select Part Number Description Size
19-1A126 PLUG CAP RUBBER BLACK SIZE 3 3
61-6A346 DRAW PLATE POLY BLACK SIZE 3 3
LP-843 LOCK PIN METAL SIZE 1,2,3,4,5,6,7 1, 2, 3, 4, 5, 6, 7
