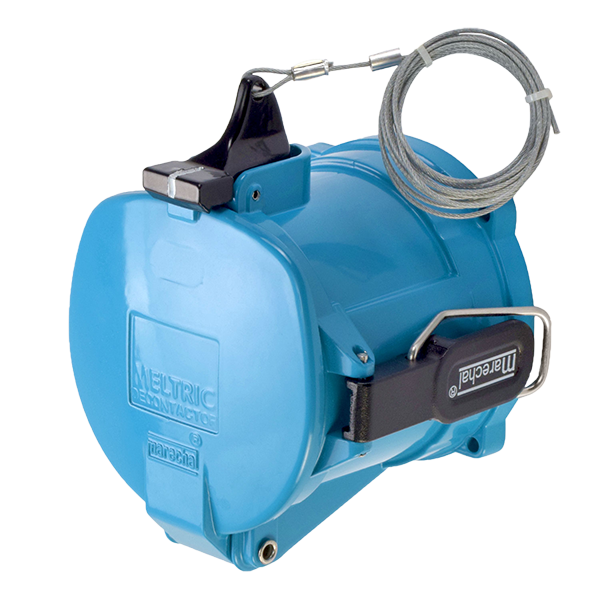

RECEPTACLE Please contact customer service for configurations that are not shown.
Select Part Number Description Amp Voltage Phasing HP Rating Environmental Rating
17-64091-348-A188 DN20c RECEPTACLE 20A 480 VAC/130 VDC 9P+G 3HP IP54/IP55
17-64100-348-A188 DN20c RECEPTACLE 20A 50 V 10P IP54/IP55
17-64100-348-A188-HP DN20c RECEPTACLE 20A 50 V 10P IP66
17-64101-348-A188 DN20c RECEPTACLE 20A 480 VAC/130 VDC 10P+G 3HP IP54/IP55
17-64111-348-A188 DN20c RECEPTACLE 20A 480 VAC/130 VDC 11P+G 3HP IP54/IP55
17-64120-348-A188-HP DN20c RECEPTACLE 20A 50 V 12P IP66
17-64121-348-A188 DN20c RECEPTACLE 20A 480 VAC/130 VDC 12P+G 3HP IP54/IP55
17-64121-348-A188-HP DN20c RECEPTACLE 20A 480 VAC/130 VDC 12P+G 3HP IP66
17-64131-348-A188 DN20c RECEPTACLE 15A 480 VAC/130 VDC 13P+G 3HP IP54/IP55
17-64131-348-A188-HP-NO DN20c RECEPTACLE 15A 480 VAC/130 VDC 13P+G 3HP IP66
17-64141-348-A188 DN20c RECEPTACLE 15A 480 VAC/130 VDC 14P+G 3HP IP54/IP55
17-64151-348-A188 DN20c RECEPTACLE 15A 480 VAC/130 VDC 15P+G 3HP IP54/IP55
17-64160-348-A188 DN20c RECEPTACLE 15A 50 V 16P IP54/IP55
17-64161-348-A188 DN20c RECEPTACLE 15A 480 VAC/130 VDC 16P+G 3HP IP54/IP55
17-64170-348-A188 DN20c RECEPTACLE 15A 50 V 17P IP54/IP55
17-64190-348-A188 DN20c RECEPTACLE 15A 50 V 19P IP54/IP55
17-64191-180-348-A188 DN20c RECEPTACLE 15A 480 VAC/130 VDC 19P+G 3HP IP54/IP55
17-64191-348-A188 DN20c RECEPTACLE 15A 480 VAC/130 VDC 19P+G 3HP IP54/IP55
17-64191-348-A188-HP DN20c RECEPTACLE 15A 480 VAC/130 VDC 19P+G 3HP IP66
17-64200-348-A188 DN20c RECEPTACLE 15A 50 V 20P IP54/IP55
17-64200-348-A188-HP DN20c RECEPTACLE 15A 50 V 20P IP66
View More

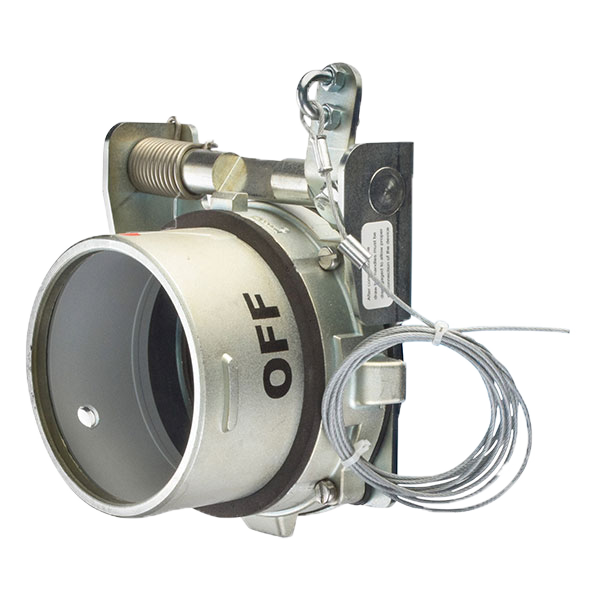

INLET Please contact customer service for configurations that are not shown.
Select Part Number Description Amp Voltage Phasing HP Rating Environmental Rating
17-68091-338-A188 DN20c INLET 20A 480 VAC/130 VDC 9P+G 3HP IP54/IP55
17-68101-338-A188 DN20c INLET 20A 480 VAC/130 VDC 10P+G 3HP IP54/IP55
17-68111-338-A188 DN20c INLET 20A 480 VAC/130 VDC 11P+G 3HP IP54/IP55
17-68121-338-A188 DN20c INLET 20A 480 VAC/130 VDC 12P+G 3HP IP54/IP55
17-68141-338-A188 DN20c INLET 15A 480 VAC/130 VDC 14P+G 3HP IP54/IP55
17-68160-338-A188 DN20c INLET 15A 50 V 16P IP54/IP55
17-68170-338-A188 DN20c INLET 15A 50 V 17P IP54/IP55
17-68191-338-A188 DN20c INLET 15A 480 VAC/130 VDC 19P+G 3HP IP54/IP55
17-68200-338-A188 DN20c INLET 15A 50 V 20P IP54/IP55
View More
ACCESSORY HANDLE
Select Part Number Description Size
515P0N07443 HANDLE w/NPT SELF EJECTING POLY BLUE SIZE 5 3/4" NPT Apx 0.52-0.68 in 5
515P0N10443 HANDLE w/NPT SELF EJECTING POLY BLUE SIZE 5 1" NPT Apx 0.68-0.98 in 5
515P0N12443 HANDLE w/NPT SELF EJECTING POLY BLUE SIZE 5 1 1/4" NPT Apx 0.98-1.47 in 5
515P0N15443 HANDLE w/NPT SELF EJECTING POLY BLUE SIZE 5 1 1/2" NPT Apx 1.26-1.56 in 5
515P0N20443 HANDLE w/NPT SELF EJECTING POLY BLUE SIZE 5 2" NPT Apx 1.19-2.19 in 5
595P0N10443 HANDLE w/NPT SELF EJECTING METAL BLUE SIZE 5 1" NPT Apx 0.75-1.00 in 5
595P0N12443 HANDLE w/NPT SELF EJECTING METAL BLUE SIZE 5 1 1/4" NPT Apx 0.88-1.38 in 5
595P0N15443 HANDLE w/NPT SELF EJECTING METAL BLUE SIZE 5 1 1/2" NPT Apx 1.25-1.81 in 5
595P0N20443 HANDLE w/NPT SELF EJECTING METAL BLUE SIZE 5 2" NPT Apx 1.69-2.44 in 5
715P0GP2443 HANDLE w/CORD GRIP SELF EJECTING POLY BLUE SIZE 5 2" NPT 1.520-1.860 in 5
View More
ACCESSORY ANGLE
Select Part Number Description Size
595M0 ANGLE ADAPTER STRAIGHT ADAPTER METAL BLUE SIZE 5 5
595M3 ANGLE ADAPTER 30 DEGREE METAL BLUE SIZE 5 5
595M7 ANGLE ADAPTER 70 DEGREE METAL BLUE SIZE 5 5

ACCESSORY BOX
Select Part Number Description Size
795C3N12 BOX/ANGLE ADAPTER 30 DEGREE METAL BLUE SIZE 5 1 1/4" NPT 5
795C3N20 BOX/ANGLE ADAPTER 30 DEGREE METAL BLUE SIZE 5 2" NPT 5
795C3N25 BOX/ANGLE ADAPTER 30 DEGREE METAL BLUE SIZE 5 2 1/2" NPT 5

ACCESSORY MISC
Select Part Number Description Size
19-6A126 PLUG CAP RUBBER BLACK SIZE 5 5
LP-843 LOCK PIN METAL SIZE 1,2,3,4,5,6,7 1, 2, 3, 4, 5, 6, 7
